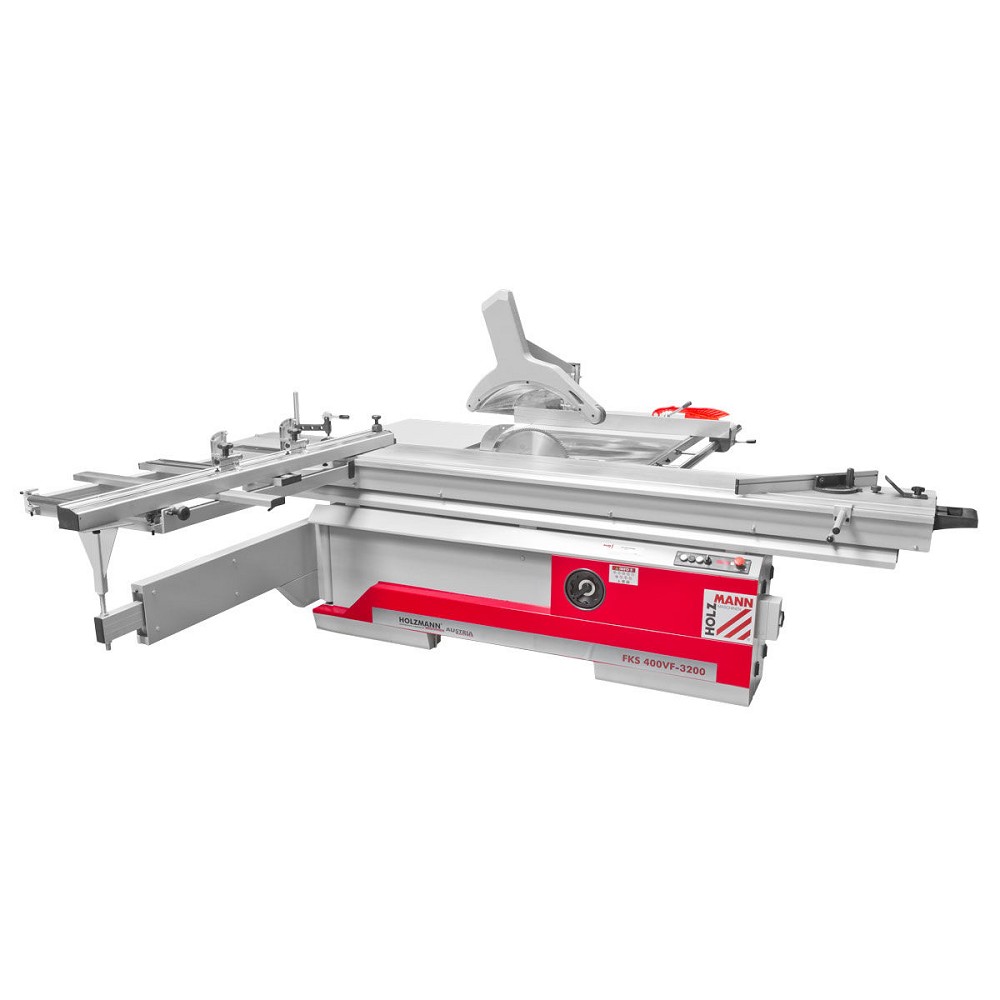

Holzmann panel saw FKS 400VF-3200

€6,999.00 * €7,999.00 * (12.5% Saved)

Prices incl. VAT plus shipping costs

Ready to ship today,
Delivery time appr. 1-3 workdays

  • FKS400VF_-_3200
  motor data motor power s1 in W 5500 motor power s6 in W 7700 voltage 400V... more
Product information "Holzmann panel saw FKS 400VF-3200"

motor data
  • motor power s1 in W 5500
  • motor power s6 in W 7700
  • voltage 400V
measurements
  • sliding table in mm 3200x405
  • suction port in mm 120
  • table height in mm 880
  • table extension in mm 700x700 / 700x800
  • table size in mm 1000x700
  • total dimensions in mm 3220x1250x1100
cutting performance
  • max. cutting width at parallel fence in mm 1350
  • max. cutting height 45° in mm 75
  • max. trimming in mm 3200
  • max. cutting height 90° in mm 120
  • scoring unit motor power in W 750/1050
circular saws
  • scoring sawblade in mm Ø120
  • sawblade in mm 400
  • sawblade speed in min-1 3000/4000/5500
  • scoring unit speed in min-1 9000
weight
  • gross weight in kg 880
  • net weight in kg 800
packaging
  • packaging length in mm 2.250
  • packaging width in mm 1.250
  • packaging height in mm 980
general data
  • EAN code 9120039903866

  • massive setting

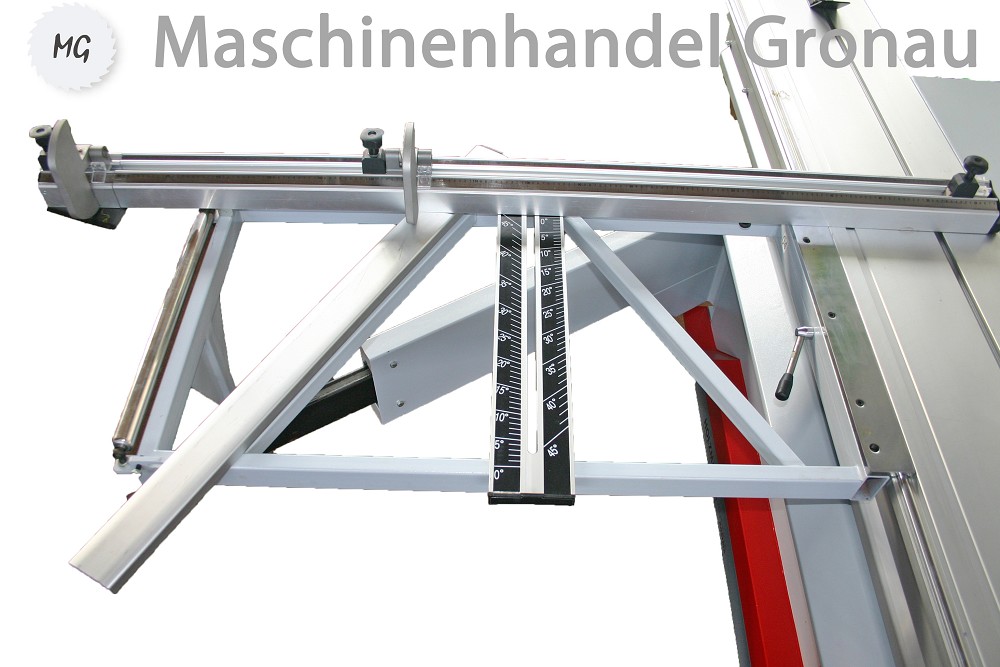

  • massive alu sliding table with extensions enables to handle big workpieces

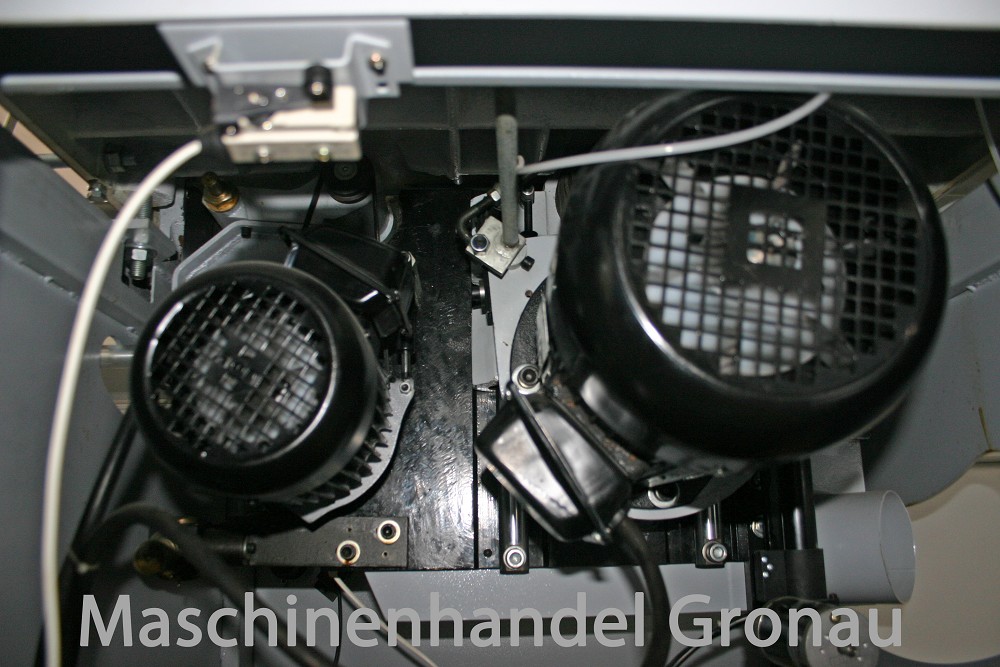

  • including scoring unit powered by a separate motor
  • manually tiltable saw blade 0 - 45°

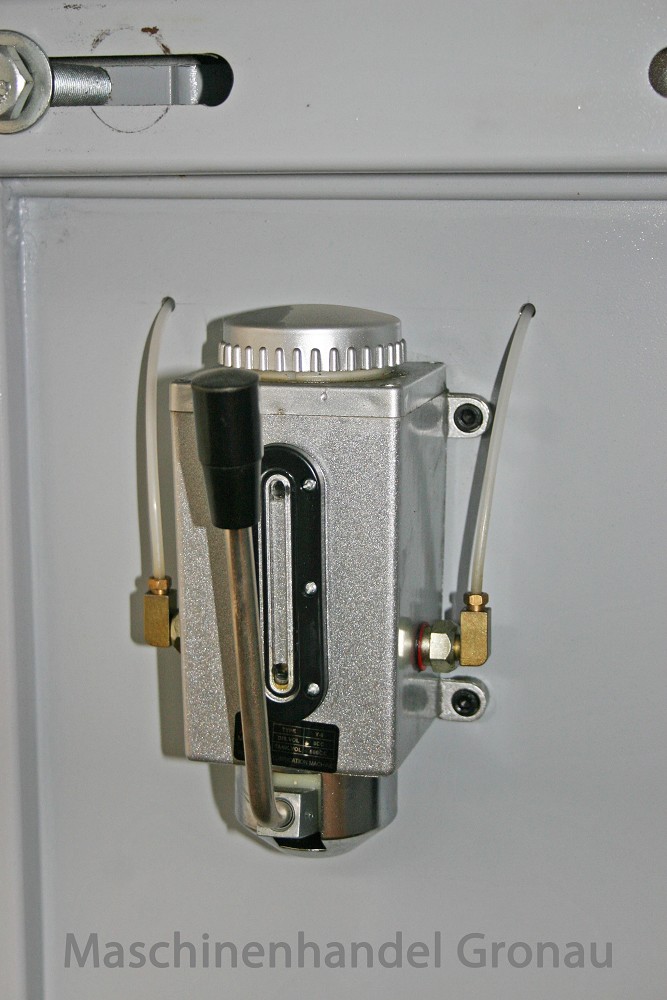

  • central lubrication
  • saw blade electrically height adjustable, tiltable per handwheel
  • with LINIX motors
  • Please note that this machine is only available with the suction hood shown on the picture! There are other pictures of this machine circulating, which do not correspond to the current scope of delivery.
