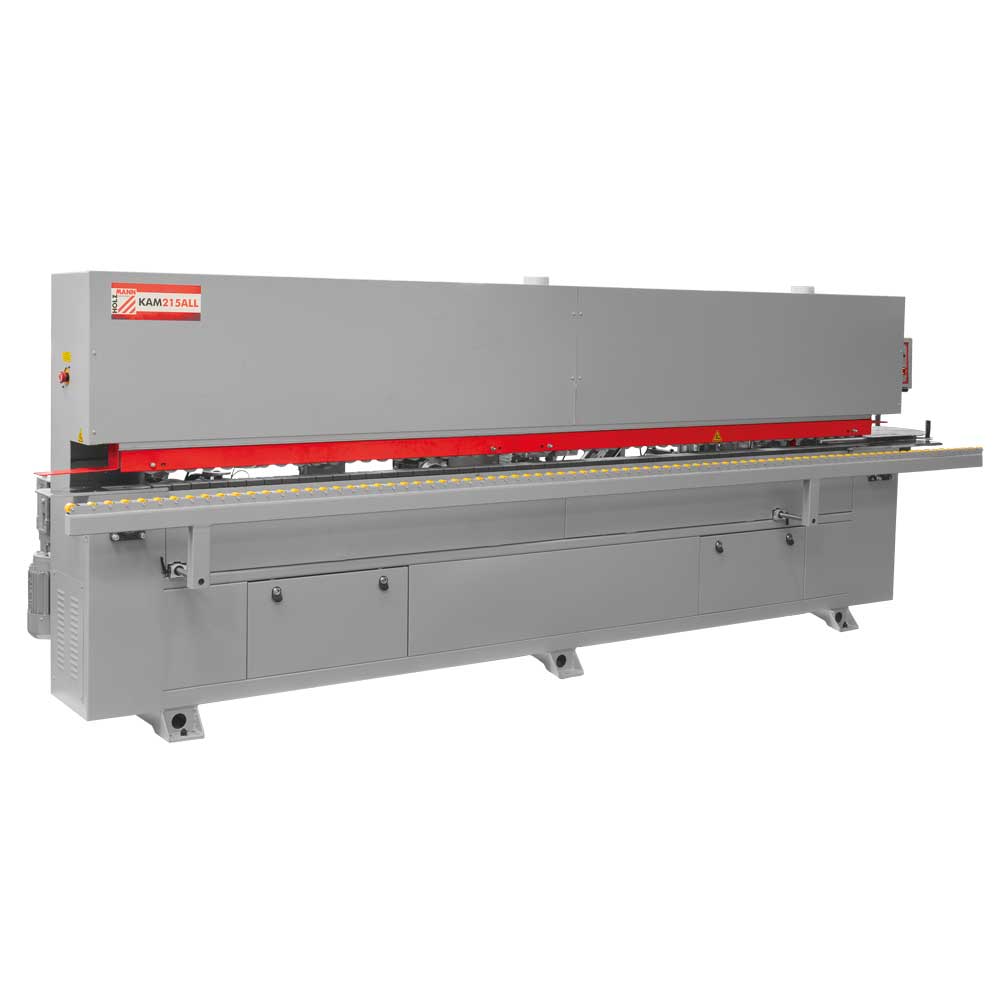

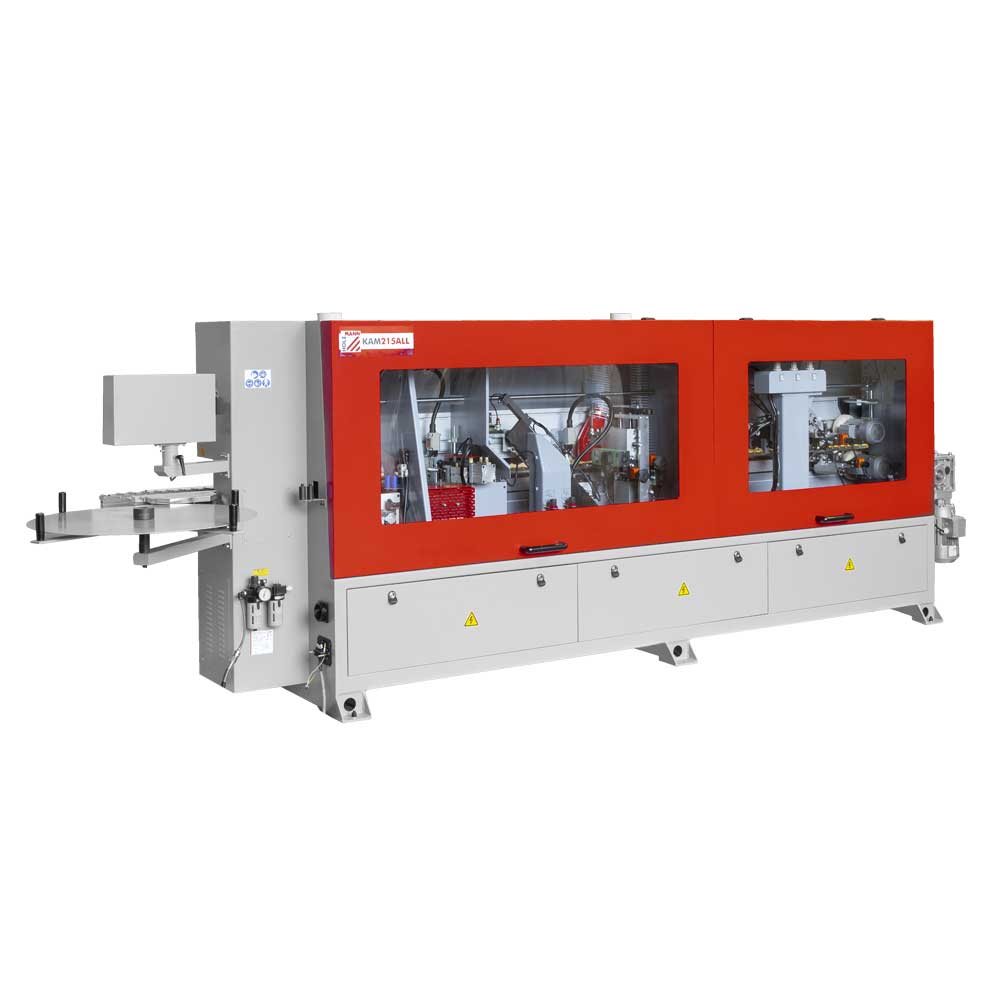

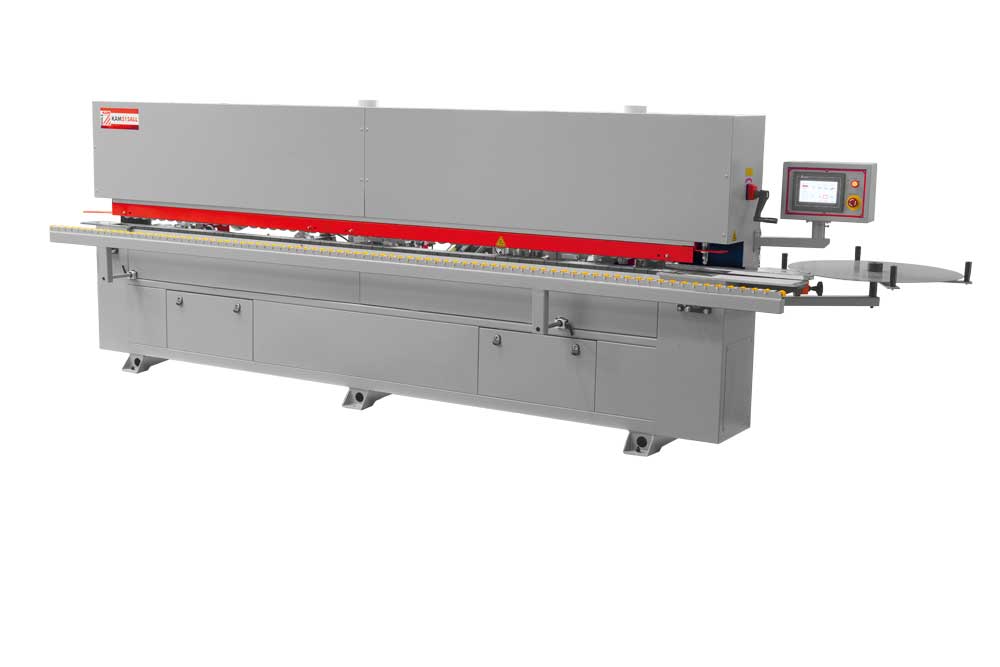

Holzmann edge banding machine KAM215ALL with pre-milling unit and vorner-trim

€17,999.00 * €19,999.00 * (10% Saved)

Prices incl. VAT plus shipping costs

Delivery time 10 Workdays

  • KAM215ALL
motor data voltage 400V / 50Hz  feed speed max. 13m/min... more
Product information "Holzmann edge banding machine KAM215ALL with pre-milling unit and vorner-trim"


motor data


  • voltage 400V / 50Hz
  • feed speed max. 13m/min


workpiece measurements


  • min. workpiece length in mm 120
  • min. workpiece width in mm 80
  • min. workpiece thickness in mm 10
  • max. workpiece thickness in mm 50


edge banding


  • edge width in mm 15-55
  • edge thickness in mm 0,4-3
  • required air pressure in bar 6


weight


  • gross weight in kg 1.363
  • net weight in kg 1.090


packaging


  • packaging width in mm 770
  • packaging length in mm 4.200
  • packaging height in mm 1.615


general data


  • EAN code 9120058378096


The established KAM215EPS is extended by a pre-milling unit and a corner-trim unit


  • touchscreen display

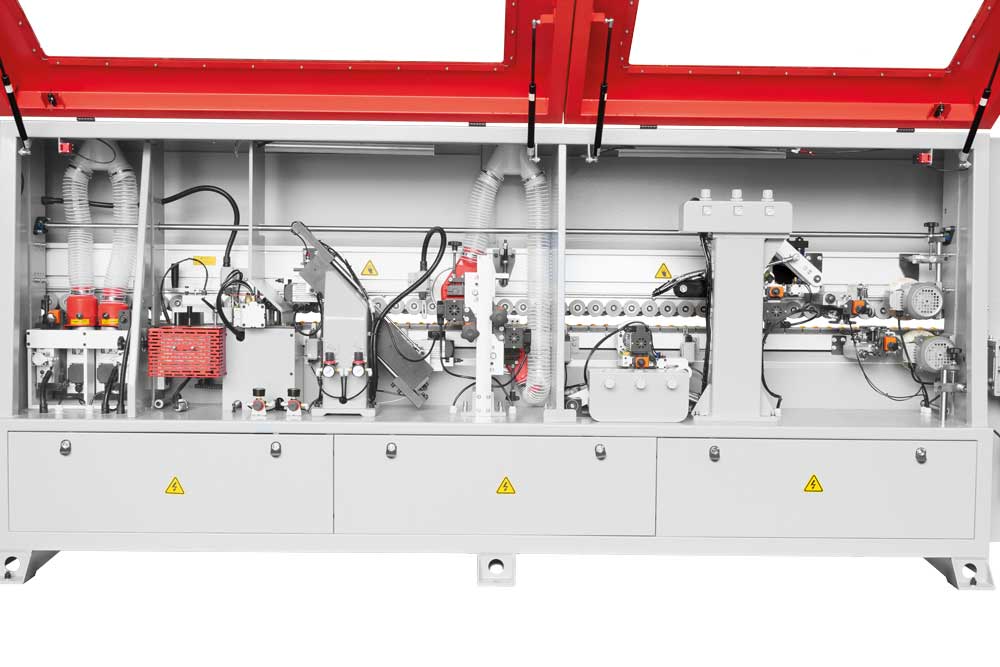

  • one-sided automatic edge banding machine with
    • pre-milling unit (double cutter left/right rotation) with ø80 mm cutter equipped; 1,1kW motor per unit and 12000min-1 cutter speed
    • glue tank with heating control and direct glue delivery to straight workpieces
    • crosscut saw unit for cutting the edge band (one unit each for front and rear side) 0,35kW motor per unit and 12000min-1 (saw blade speed)
    • double trimming unit for trimming the edge overhang on the workpiece (top/bottom) with form cutter straight or with radius 2 mm;  0,75KW motor per unit and 18000min-1
    • Corner trim (double trimming unit) one for the lower and one for the upper corner of the workpiece (0,3kW motor per unit)
    • R-scraper unit (top/bottom side)
    • polishing unit (top/bottom) 0,18 kW per unit and 1400min-1
  • pressure rollers ensure an ideal connection between laminate and workpiece
  • automatic and constant panel feed thanks to chain conveyor drive and powerful motor.
  • gluing temperature can be set electronically on the touch display
  • edge band support table


Included in delivery: 2x pre-milling cutters (ø80xø20x55 mm), 2x saw blades (ø104xø22x3/2.2 30T), 2x polishing disc (ø150mm), 2x blades, 2x cutters for double milling unit, 2 x cutters for corner-trim
