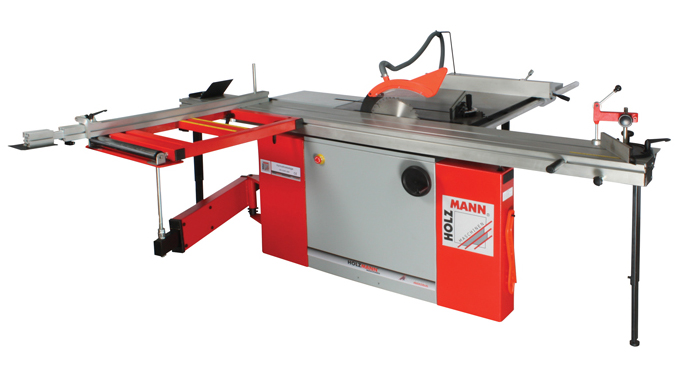

Holzmann panel saw TS 315VF-3200
- Order number: TS315VF-3200_400V
- Open text field 1: 9120039904542
- Open text field 2: 430
motor data motor power s1 in W 3800 motor power s6 in W 5100 voltage 230V or 400V... more
Product information "Holzmann panel saw TS 315VF-3200"
motor data
- motor power s1 in W 3800
- motor power s6 in W 5100
- voltage 230V or 400V
measurements
- outrigger table in mm 760x540
- sliding table in mm 3200x270
- suction port in mm 100
- table height in mm 850
- table extension in mm 500x310 /800x440
- table size in mm 800x820
cutting performance
- max. cutting width at parallel fence in mm 1260
- max. cutting height 45° in mm 75
- max. trimming in mm 3200
- max. cutting height 90° in mm 100
circular saws
- sawblade speed in min-1 4500
- scoring sawblade in mm 100
- sawblade in mm 315
- scoring unit speed in min-1 8500
- sawblade swivel 0°-45°
weight
- gross weight in kg 384
- net weight in kg 350
packaging
- packaging length in mm 1.330
- packaging width in mm 765
- packaging height in mm 1.040
general data
- EAN code 9120039904542
- extension table and rip fence guide bar can be clapped
- down fast and with ease

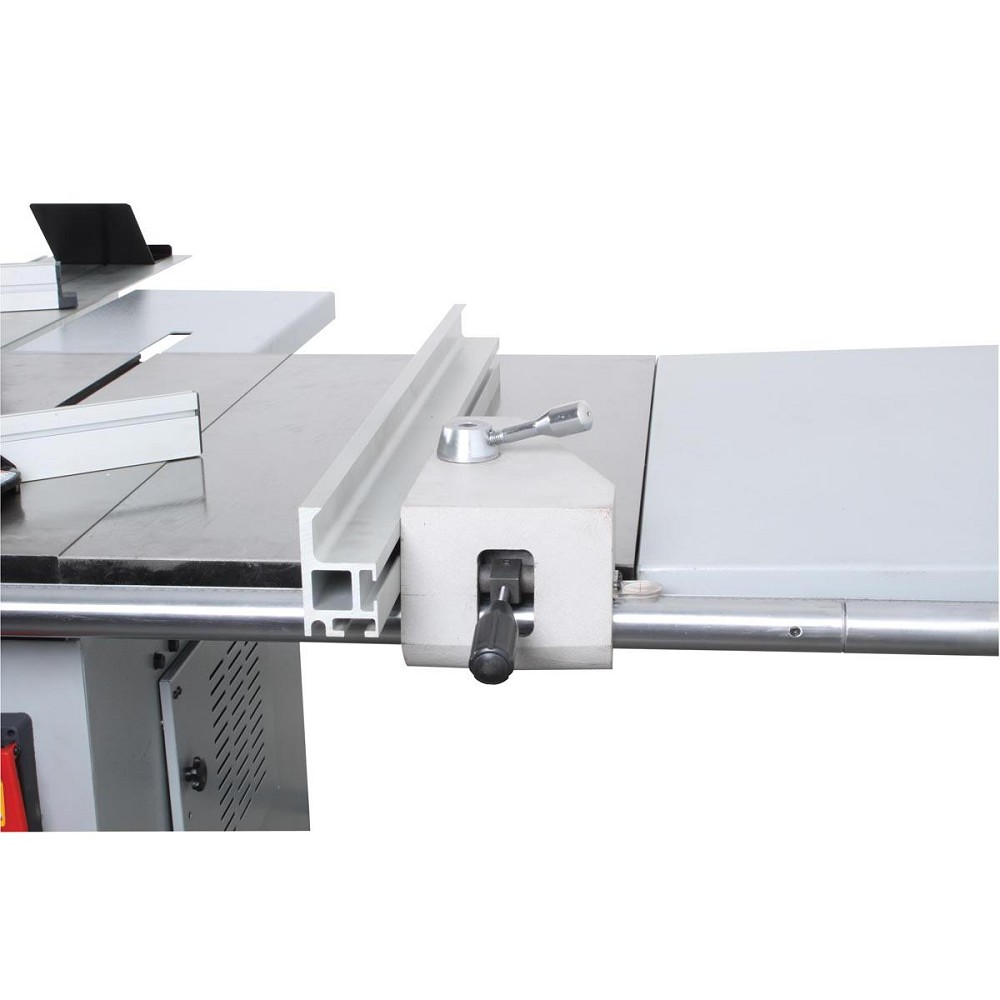

- solid and smoothly running rip fence with quick clamp and bar guided
- tiltable and height adjustable circular saw blade with scoring unit
- cast iron table with table extension in the back and left with support leg
- extractable fence with worpiece end stop
- support roller at outrigger table eases the work piece allocation

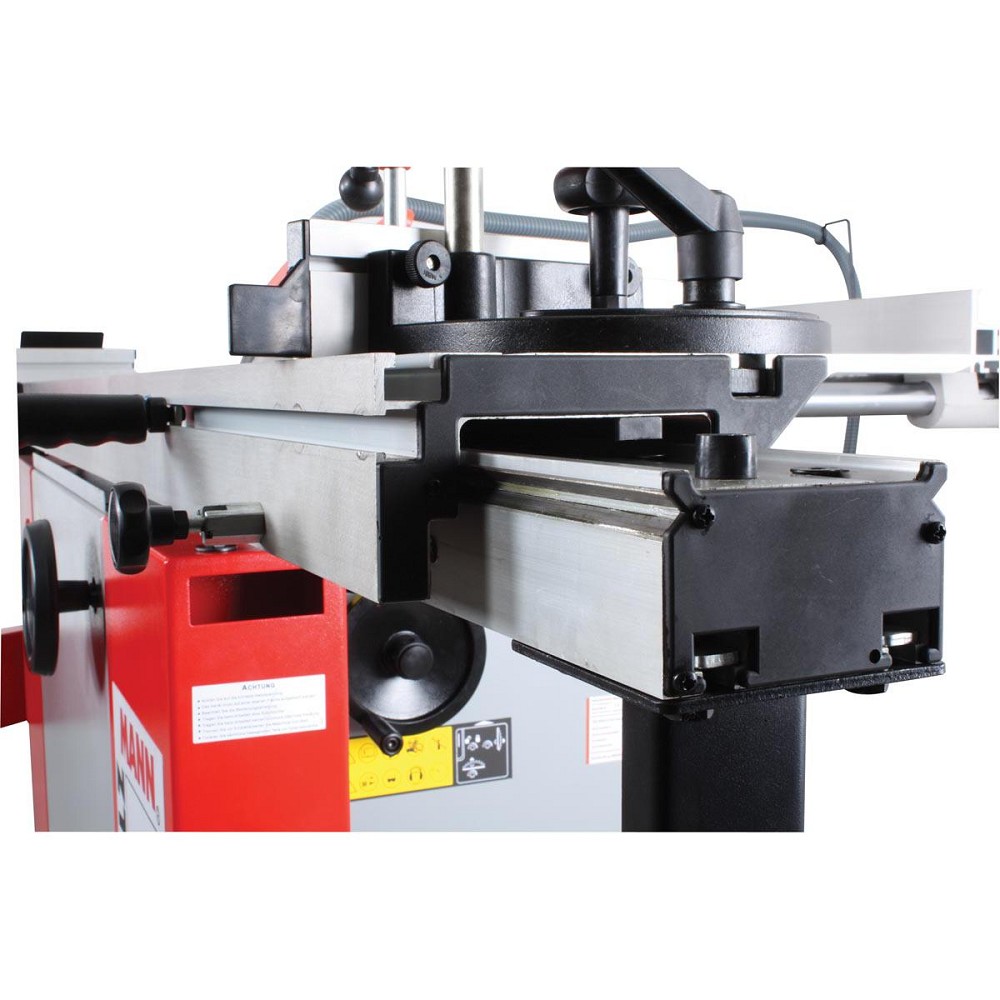

- strengthened machine body below the sliding table
- increases stability
- XL cutting width at rip fence with max.1260mm
- high quality 2-piece scoring saw blade included
included in delivery: scoring unit, 1x T.C.T. saw blade Ø315mm, 1x T.C.T. scoring blade Ø100mm, mitre gauge, parallel fence, telescopic fence
