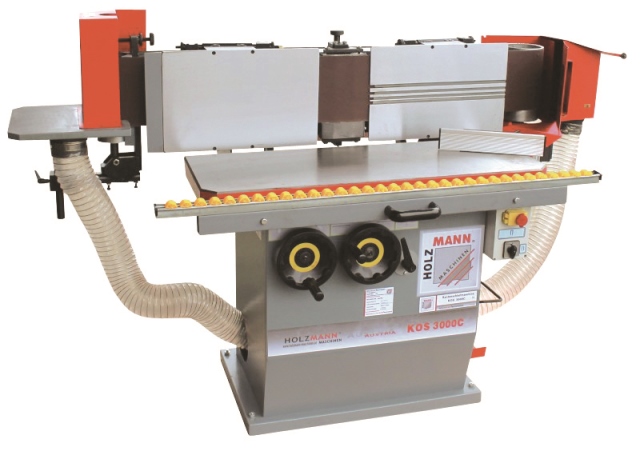

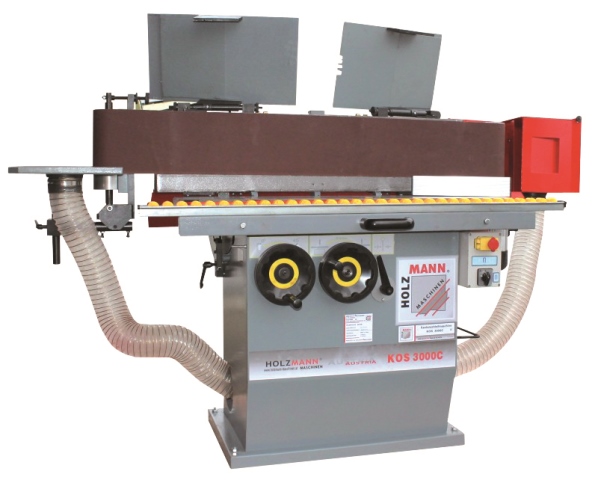

Holzmann edge belt sander KOS3000C
- Order number: KOS3000C
- Open text field 1: 9120039904146
- Open text field 2: 361
motor data motor power s1 in W 3000 motor power s6 in W 4200 voltage... more
Product information "Holzmann edge belt sander KOS3000C"
motor data
- motor power s1 in W 3000
- motor power s6 in W 4200
- voltage 400V
measurements
- table size in mm 960x350
grinding
- belt dimensions in mm 3000x200
- belt speed 20
weight
- gross weight in kg 350
- net weight in kg 284
packaging
- packaging length in mm 1.680
- packaging width in mm 930
- packaging height in mm 1.200
general data
- EAN code 9120039904146
- heavy and precise industrial setup
- veneer sanding attachment with fine adjustment function, veneer shoe, fence, release rollers
- special fence with nuts for veneer-overhang
- seperate oscillation gear drive
- bar guided cast iron table height adjustment via hand wheel
- extractable table extension with multi-roller system
- double dust collecting system of round table and main sanding unit

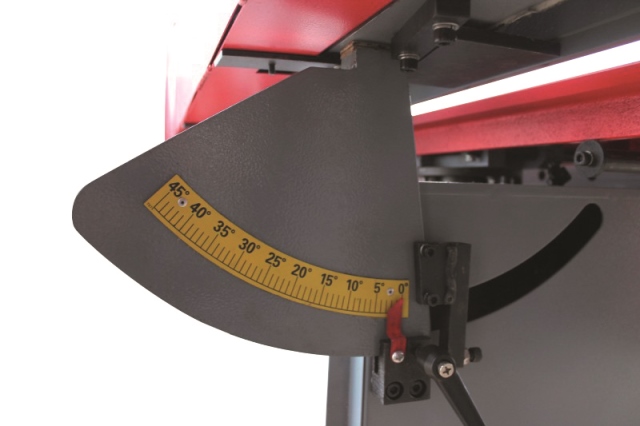

- main sanding unit steplessly adjustable from vertical to 45° via hand wheel
- precision guided sanding rollers allow smooth belt-run
- precise mitre gauge with angle scale
- spring mounted band tension system
- graphite coated contact surface minimizes friction
- dust collecting diameter: 120mm
- horizontal easy gliding parallel guiding system at the working table
included in delivery: sanding belt grain, mitre gauge, veneer sanding device, round-sanding table, table extension
