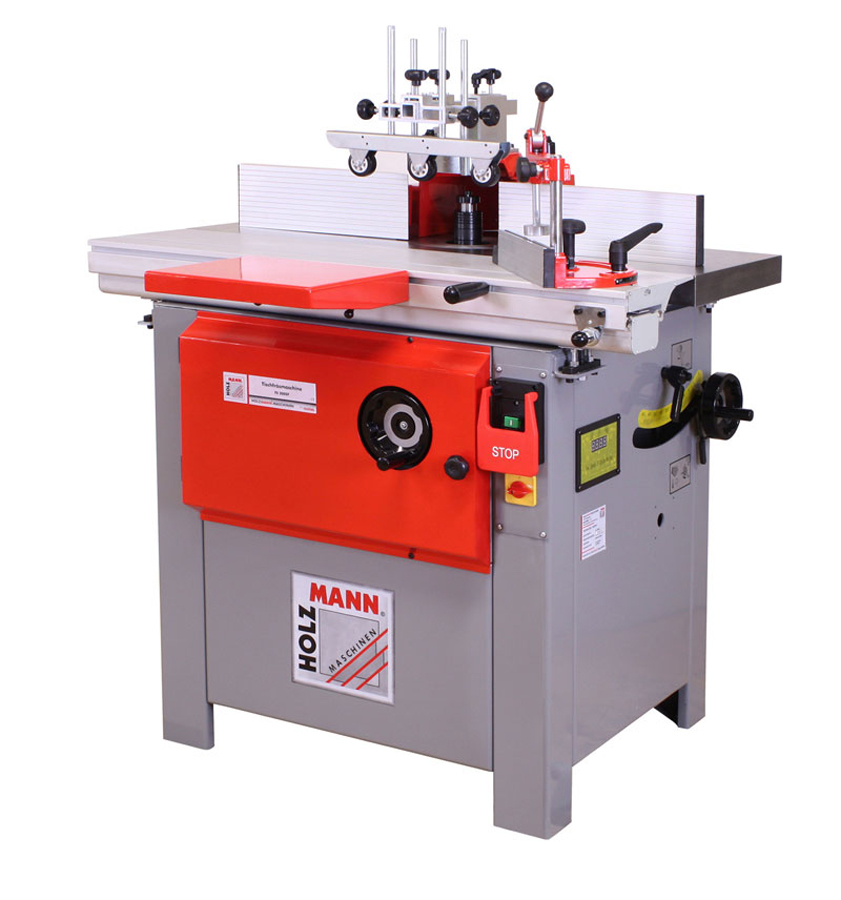

Holzmann spindle shaper FS 200SF
- Order number: FS200SF_230V
- Open text field 1: 9120039901909
- Open text field 2: 270
motor data motor power s1 in W 2800 motor power s6 in W 3750... more
Product information "Holzmann spindle shaper FS 200SF"
motor data
- motor power s1 in W 2800
- motor power s6 in W 3750
- voltage 230V or 400V
measurements
- sliding table in mm 1000x250
- table height in mm 900
- table size in mm 1000x360
milling and drilling
- table opening in mm 200
- max. tool diameter below table in mm 180
- milling spindle swivel 0° +45°
- max. clamping height in mm 100
- spindle stroke in mm 100
- milling spindle speed in min-1 1800/3000/6000/9000
- milling spindle diameter in mm 30
- mitre fence in mm 360x120
- max. tool diameter above table 180
weight
- gross weight in kg 260
- net weight in kg 218
packaging
- packaging length in mm 1.150
- packaging width in mm 730
- packaging height in mm 1.200
general data
- EAN code 9120039900957
- massive and torsion-resistant, ground grey cast iron table
- smoothly running aluminium sliding table (250mm width) with extension table (+ 250mm width)
- 4 spindle speeds, maintenance cover positioned at frontside of the machine for convenient speed change.
- Spindle tilts backwards - up to 45°

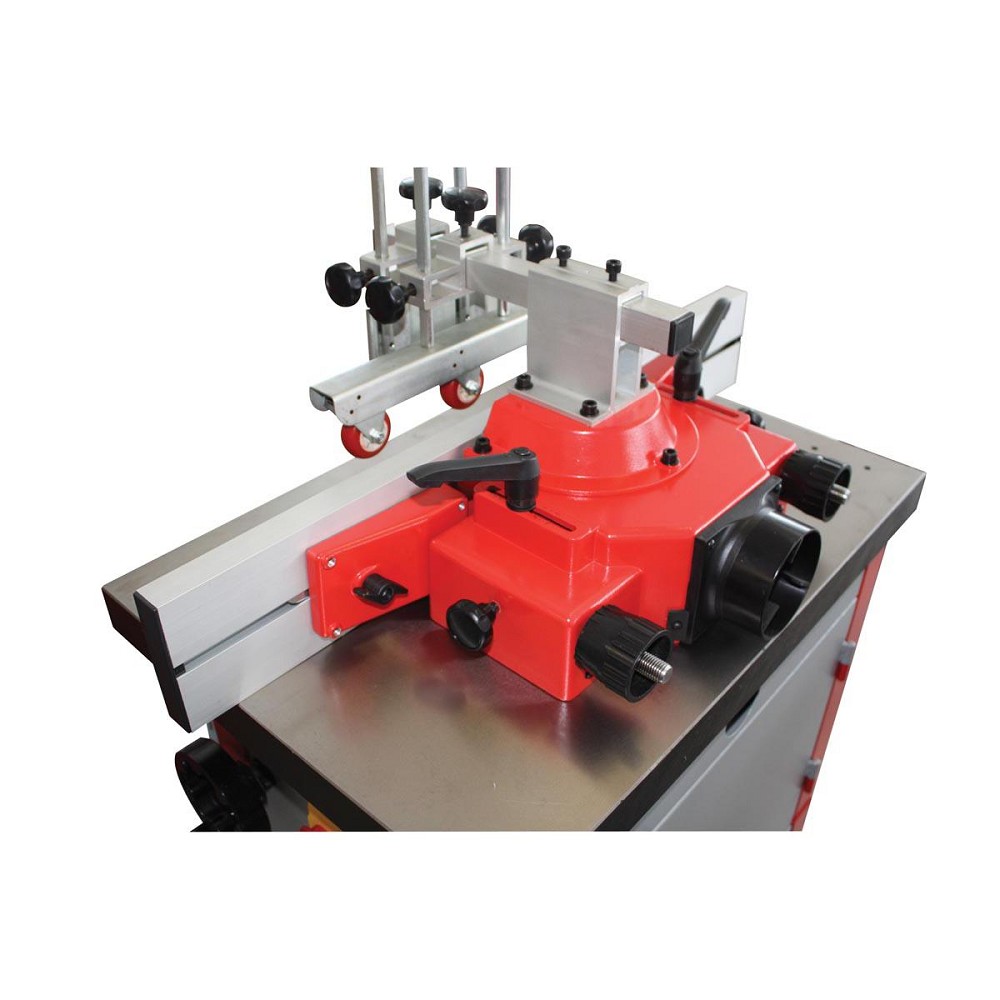

- HQ shaper fence with guiding-rollers ensures an exact workpiece feeding.
- Electric spindle speed indication via LCD
- Spindle-lock lever positioned at machine side for fast and convenient cutter head change.
- Dust extraction plug diameter: 100mm
included in delivery: spindle shaper guard, angle gauge incl. workpiece clamp, spindle shaper hood
