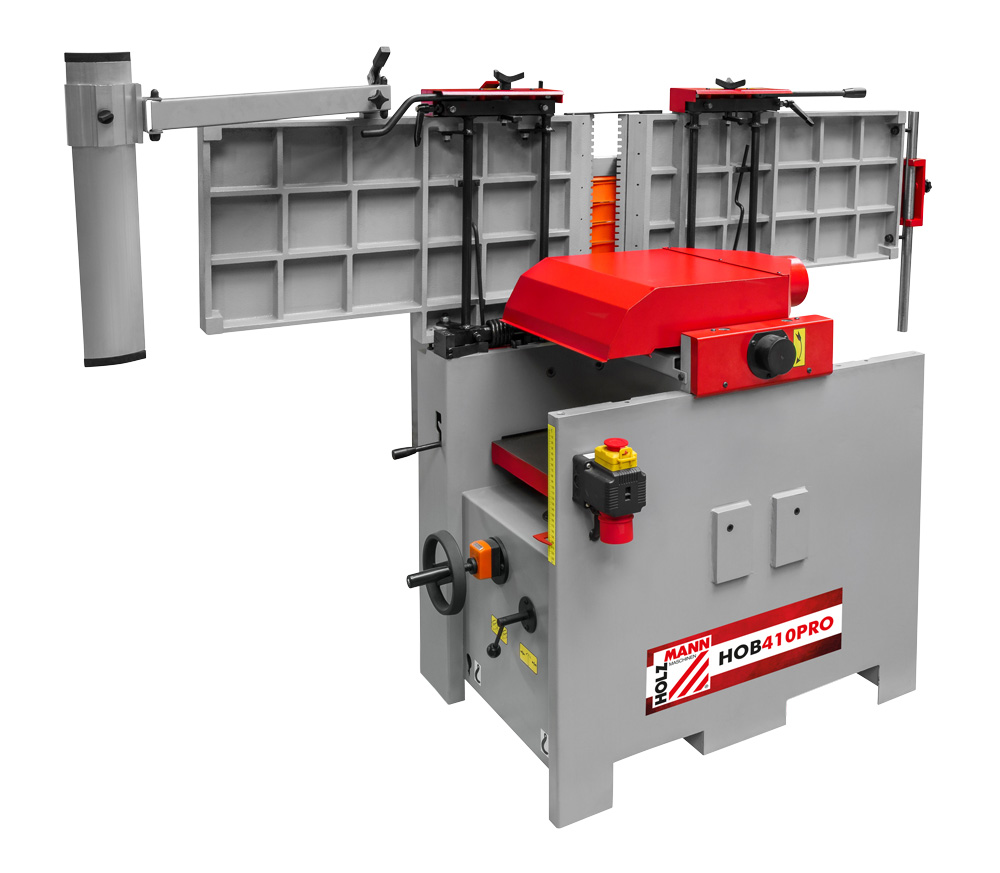

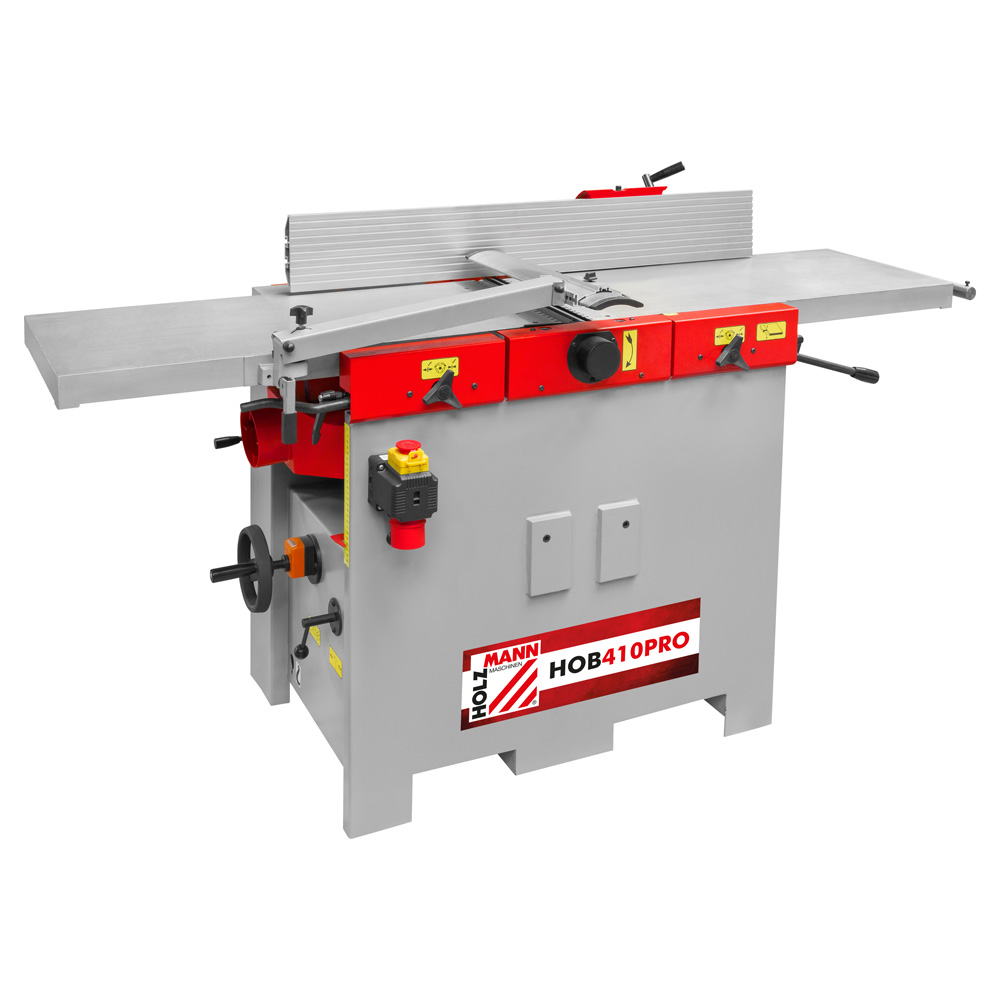

Holzmann combined planer and thicknesser HOB410PRO

€3,869.00 * €4,299.00 * (10% Saved)

Prices incl. VAT plus shipping costs

Delivery time 90 Workdays

  • HOB410PRO
    planing planing table size in mm 1800 x... more
Product information "Holzmann combined planer and thicknesser HOB410PRO"


planing
  • planing table size in mm 1800 x 410
  • max. thicknessing cutting depth in mm 5

motor data
  • feed speed 7m/min
  • voltage 400V / 50Hz
  • motor power s6 in W 5,5kW S6(40%)

measurements
  • suction port in mm ø120

thicknessing
  • table size in mm 700 x 410
  • cutting depth in mm 4

general planing
  • shaft diameter in mm 98
  • shaft speed in min-1 4700
  • cutter knives amount 4

volume level and vibration
  • sound power level in dB(A) 111
  • sound pressure level in dB(A) 82

weight
  • gross weight in kg 570
  • net weight in kg 420

packaging
  • packaging width in mm 845
  • packaging length in mm 2.000
  • packaging height in mm 1.100

general data
  • EAN code 9120058377068







  • high quality and industrial machine
  • reaewards tilting tables don’t disturb while thicknessing
  • grey cast iron tables with grounded surface
  • stable profi fence tiltable from 90° to 45°
  • two adjustable thicknessing rollers
  • spiral-toothed infeed roller supports an easy infeed of the work piece
  • precisely bedded 4-knife cutterblock with reversible planer knives
  • stable column guided thicknessing table with extra guiding
  • sideways guided stable planer fence

included in delivery: mounted reversible planer knives, heavy profi fence, counter block
