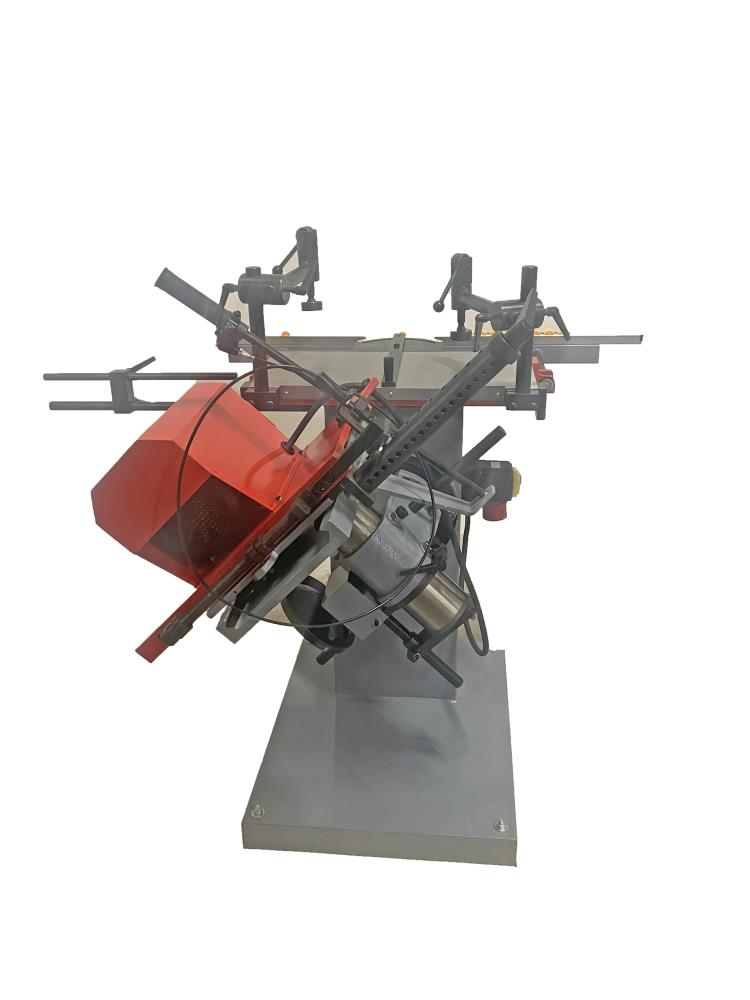

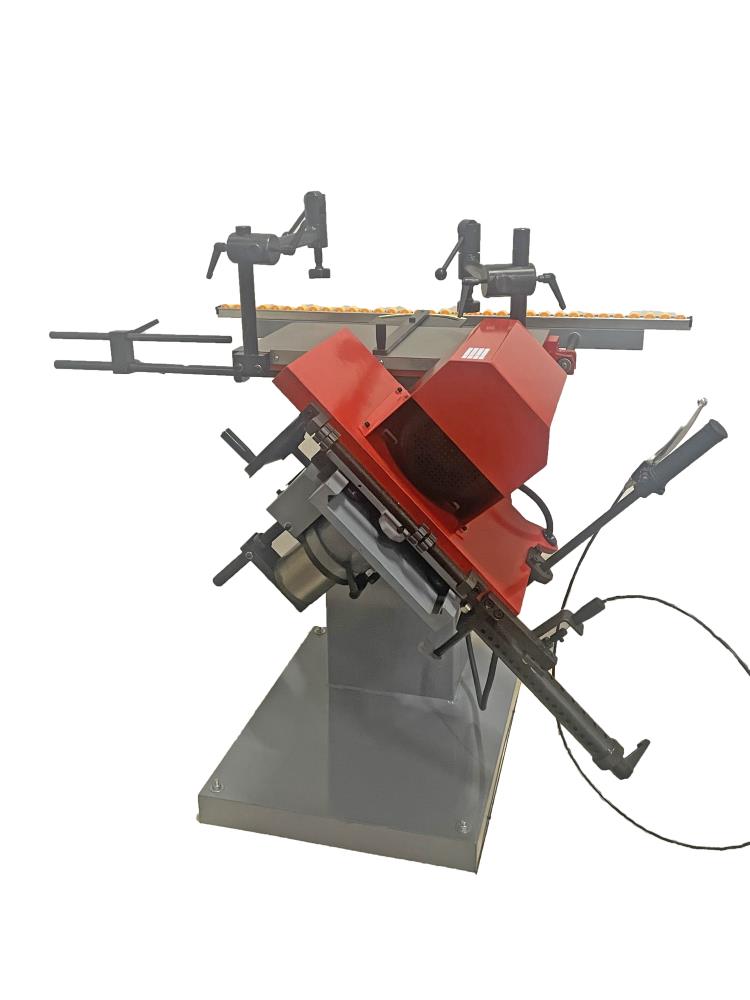

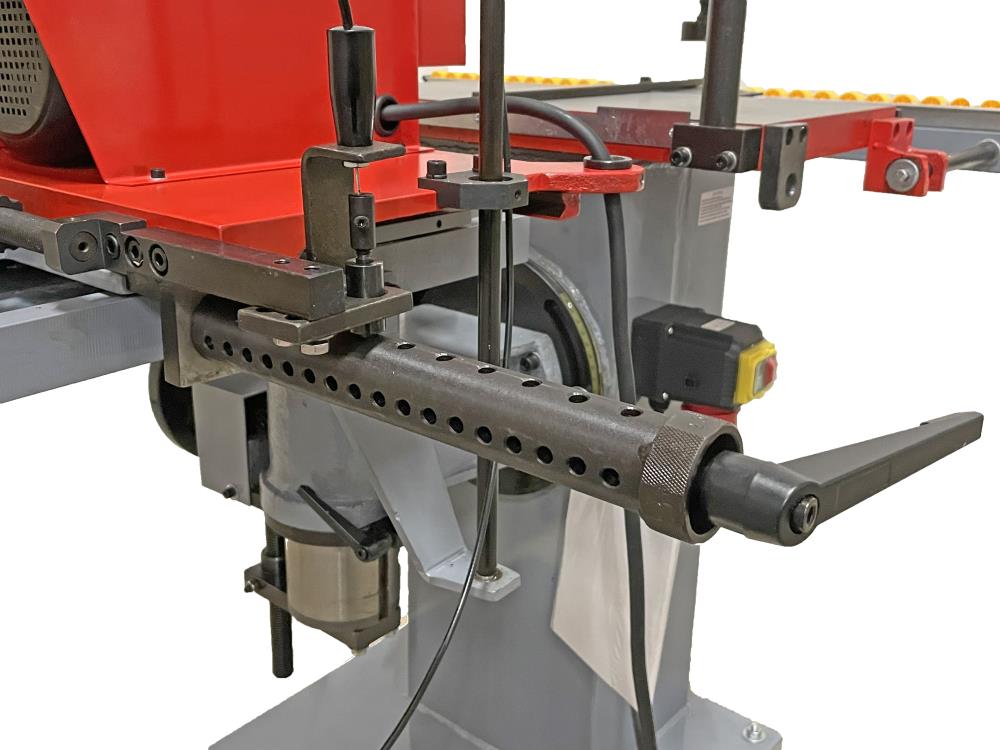

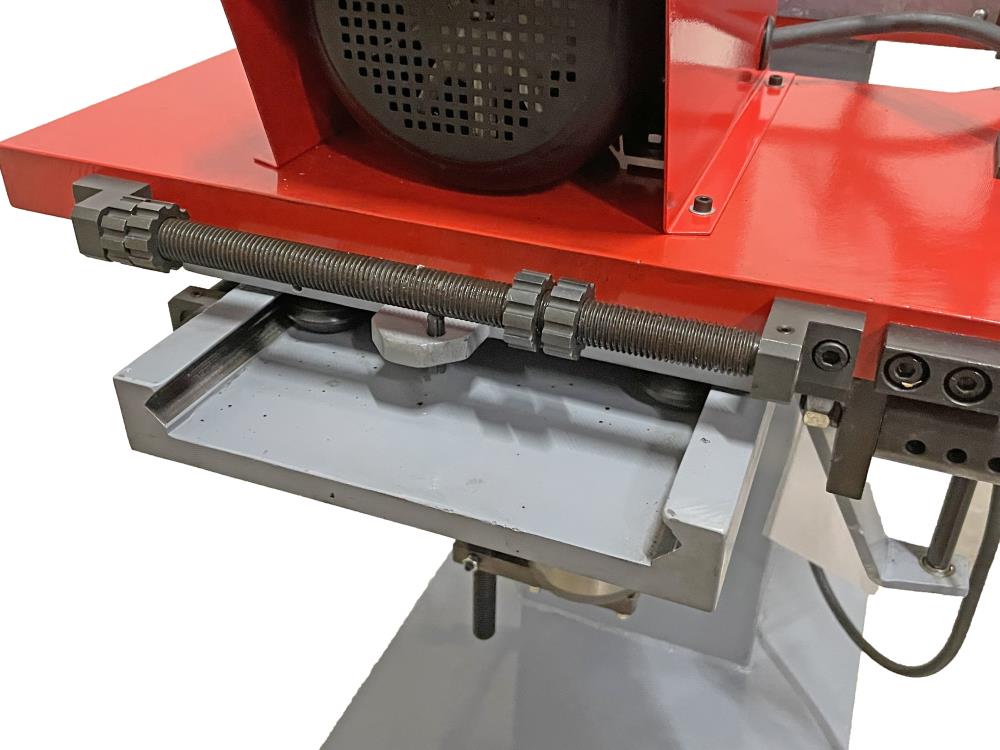

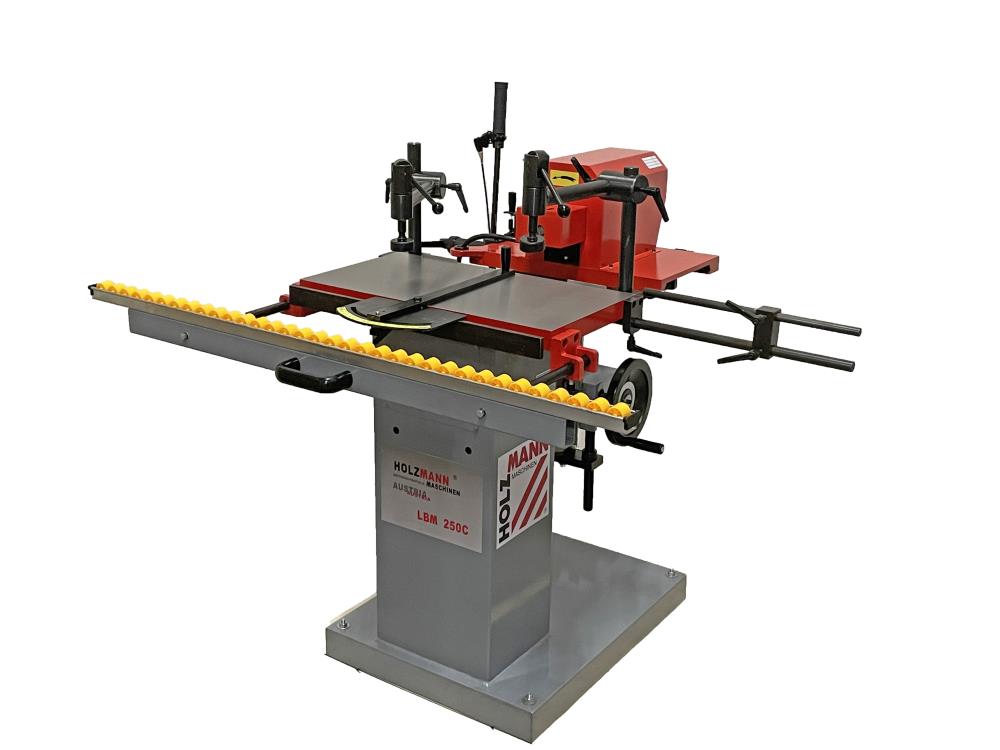

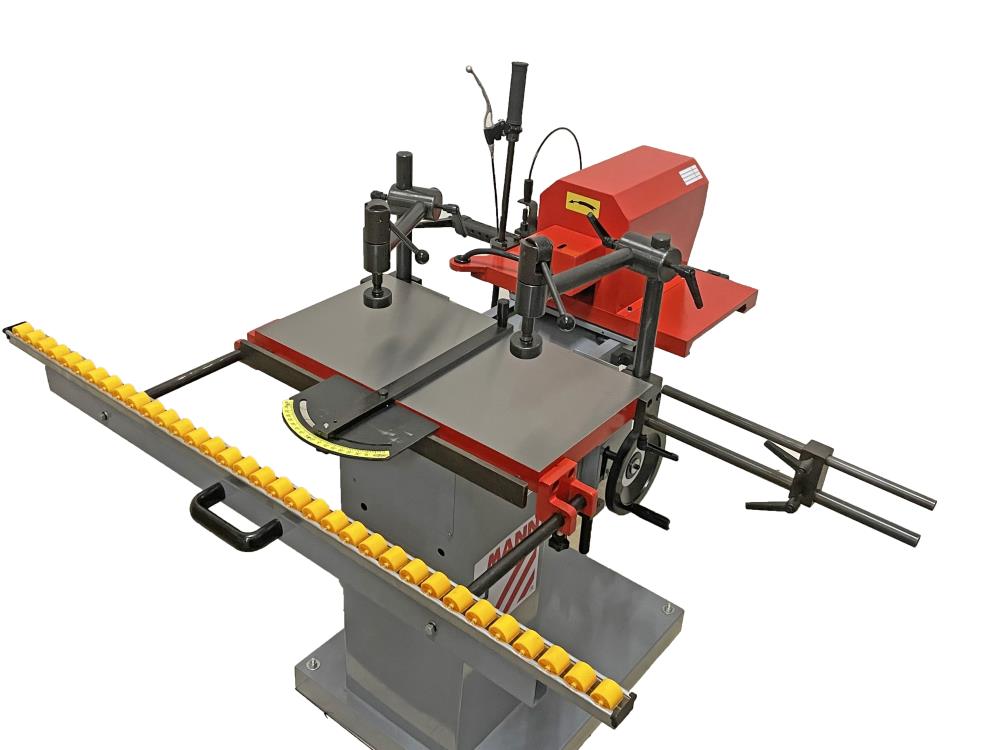

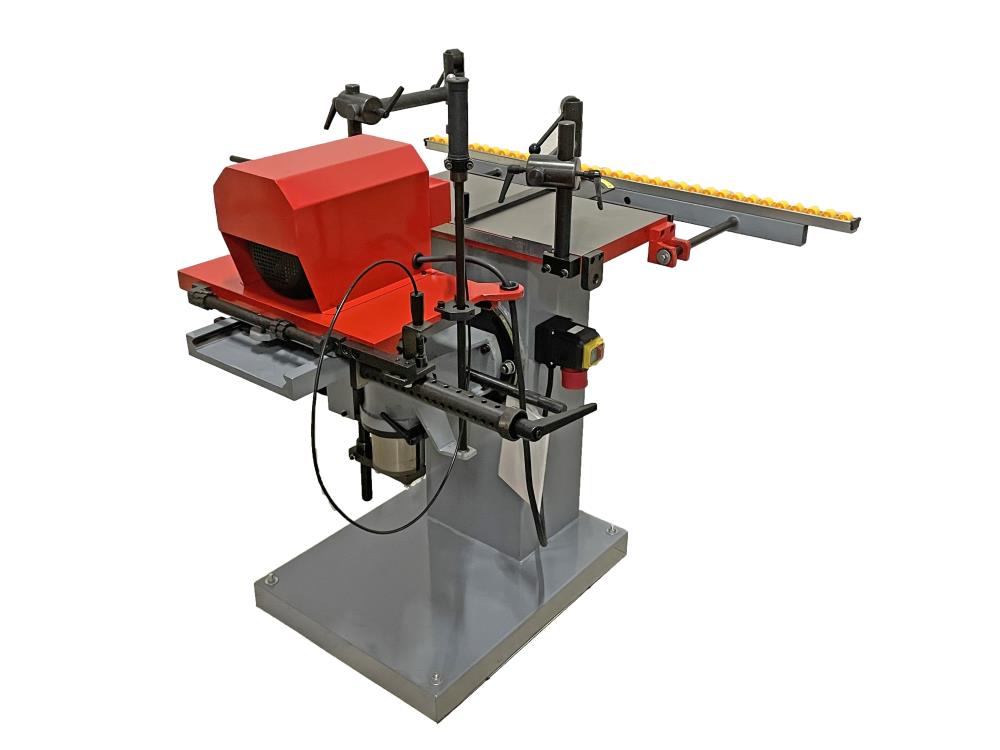

Holzmann mortising machine LBM250C

LBM250C
€2,099.00 * €2,499.00 * (16.01% Saved)

Prices incl. VAT plus shipping costs

Ready to ship today,
Delivery time appr. 1-3 workdays

  • LBM250C
      motor data motor power s1 in W 2200... more
Product information "Holzmann mortising machine LBM250C"



motor data
  • motor power s1 in W 2200
  • motor power s6 in W 3100
  • voltage 400V

measurements
  • table size in mm 600x320
  • table stroke in mm 155

drilling wood
  • max. drilling width in mm 250
  • pin point distances in mm 16/22/25/32
  • max. drilling depth in mm 215

weight
  • gross weight in kg 240
  • net weight in kg 205

packaging
  • packaging length in mm 1.000
  • packaging width in mm 740
  • packaging height in mm 1.260

general data
  • EAN code 9120039904139











  • solid non-twistable grey cast iron machine for highly accurate work
  • inclined slotted holes and precision drills easily doable
  • drilling head pivoting left and right
  • comfortable one hand operation feasible
  • huge operating range
  • pin drilling device with 4 different defined positions (16-22-25-32mm)
  • adjustable end stops for transversal and longitudinal operation
  • easy and comfortable height adjustment via hand wheel
  • integrated phase turn over device
  • mitre gauge and extractable table included

included in delivery: mitre fence, 2pcs eccentric clamps, Wescott drill chuck 0-20mm, motor protection, extractable table, pin drilling device
