€1,034.00 * €1,149.00 * (10.01% Saved)
Prices incl. VAT plus shipping costs
Delivery time 10 Workdays
- Order number: BF16V
voltage 230V / 50 Hzengine power 350 Wlateral axis (Y) 100mmlong axis (X) 220mmvertical axis (Z)... more

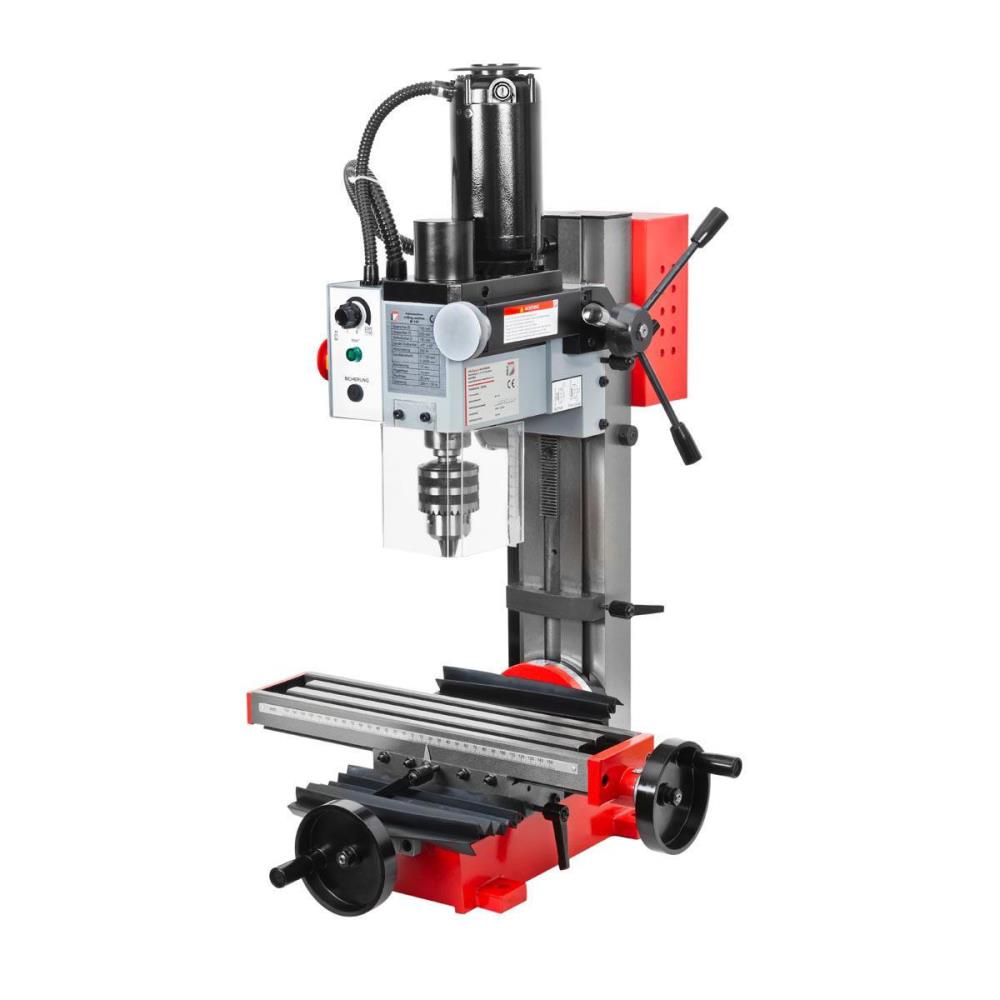

Product information "Holzmann milling machine BF 16V"

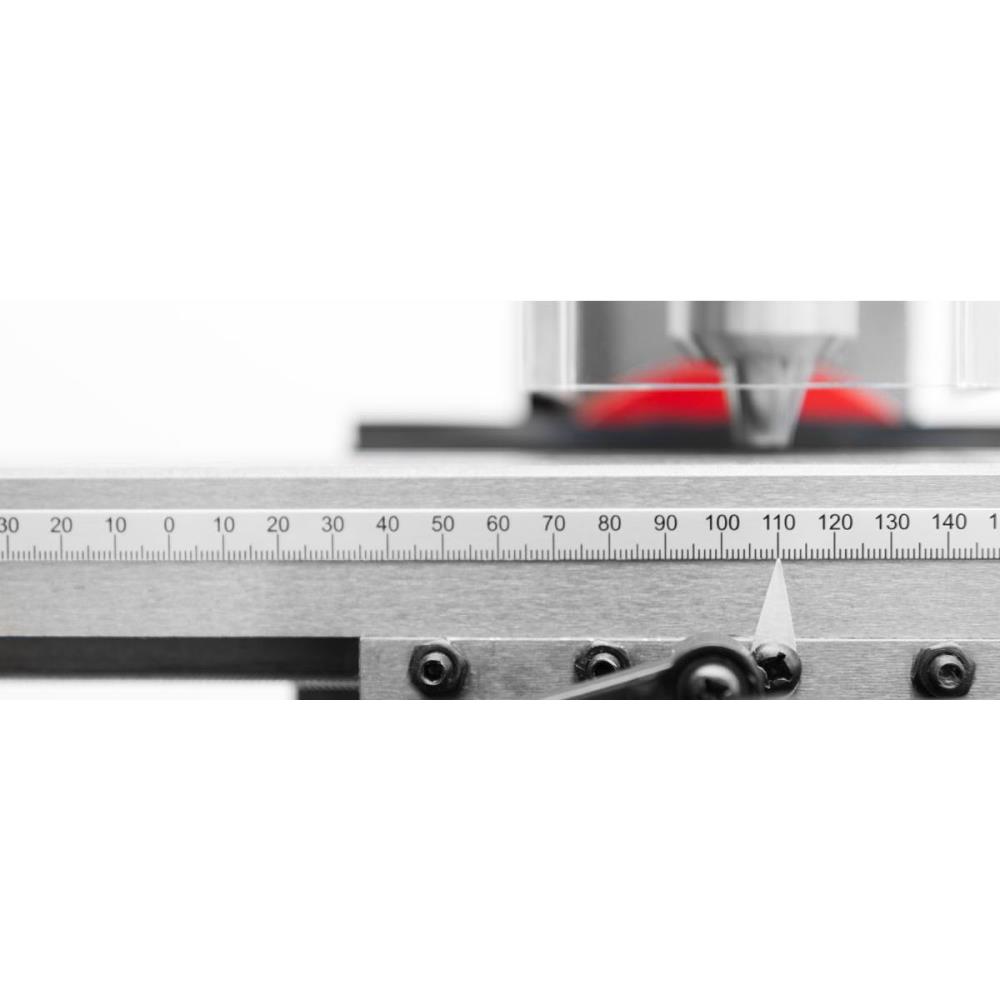

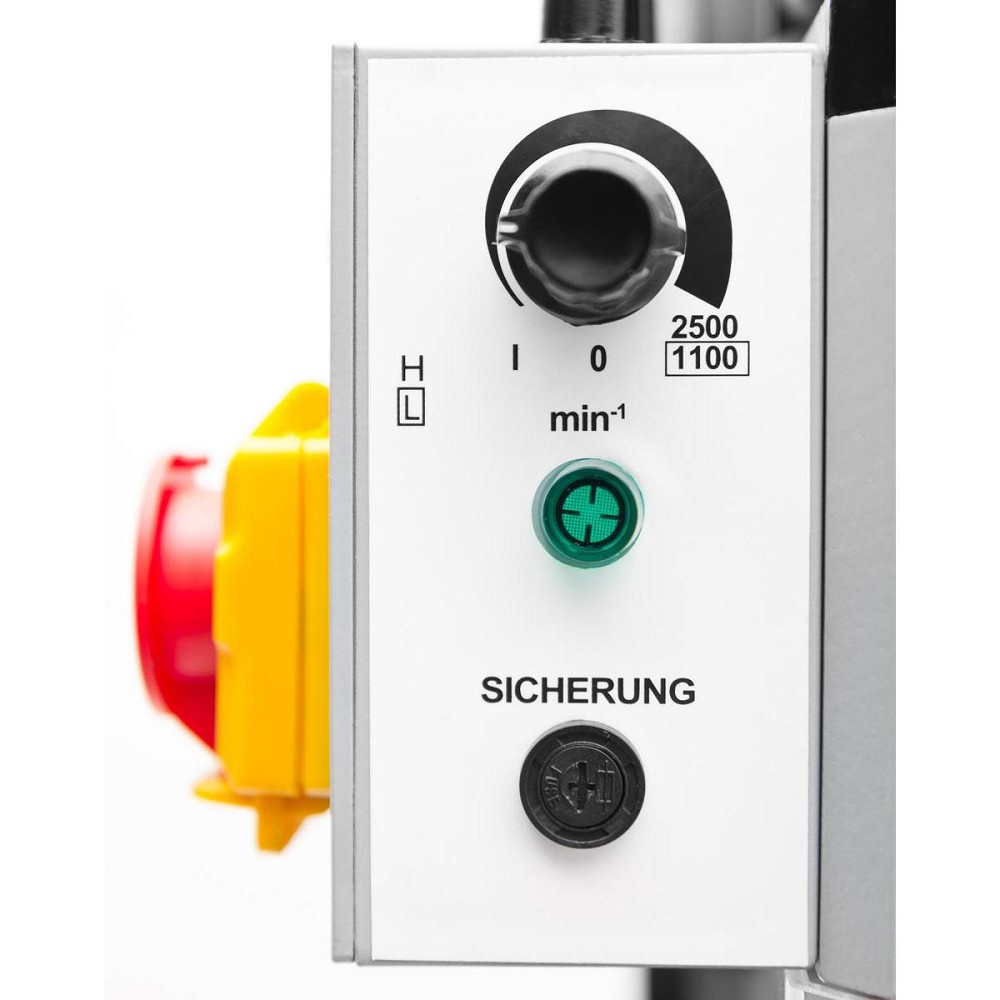

voltage 230V / 50 Hzengine power 350 Wlateral axis (Y) 100mmlong axis (X) 220mmvertical axis (Z) 180mmdrilling capacity 13mmend mill 16mmface mill 30mmspindle holder MT3drill chuck 3-13 mmspindle speed L = 0-1100 min-1 H = 0-2500 min-1min-max distance spindle tip-workbench 60-275 mmdrillhead tilt -40° +45°machine dimensions 520 x 510x 760 mmnet weight 50 kggross weight 68 kg cross table dovetail guided cross table and gear, adjustable via gibs rotateable gear head enlarges use of application three lever wheel for drilling operation high quality cross table with scale ideal machine for schools, precision mechanic and DIY usersIncluded in delivery: drill chuck 3-13mm, toolings
