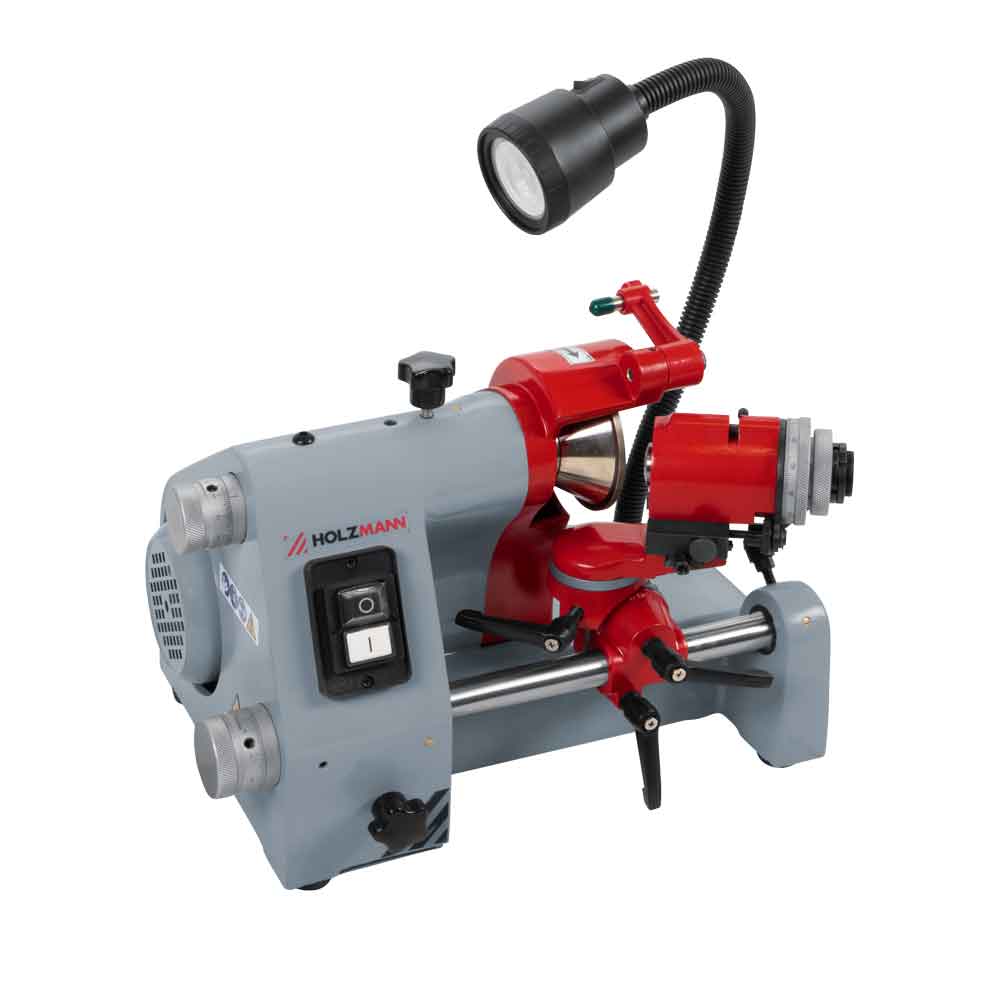

Holzmann universal tool grinding machine UWS 3

grinding wheel 100x50x20mm
voltage 230V
motor power 0,5HP
chuck diameter min/max 3-16mm
sanding diameter 25mm
speed main spindle 5000rpm
taper grinding 0-180°
rear angle 0-45°
negative angle 0-25°
packing dimension 55x45x47cm
weight (NW/GW) 46/52kg


versatile applicable through various settings
for grinding punches, twist drills, electrodes, cutters, center points and so on
stable machine body and precise grinding spindles enable high precision and vibration-free run
handy operation

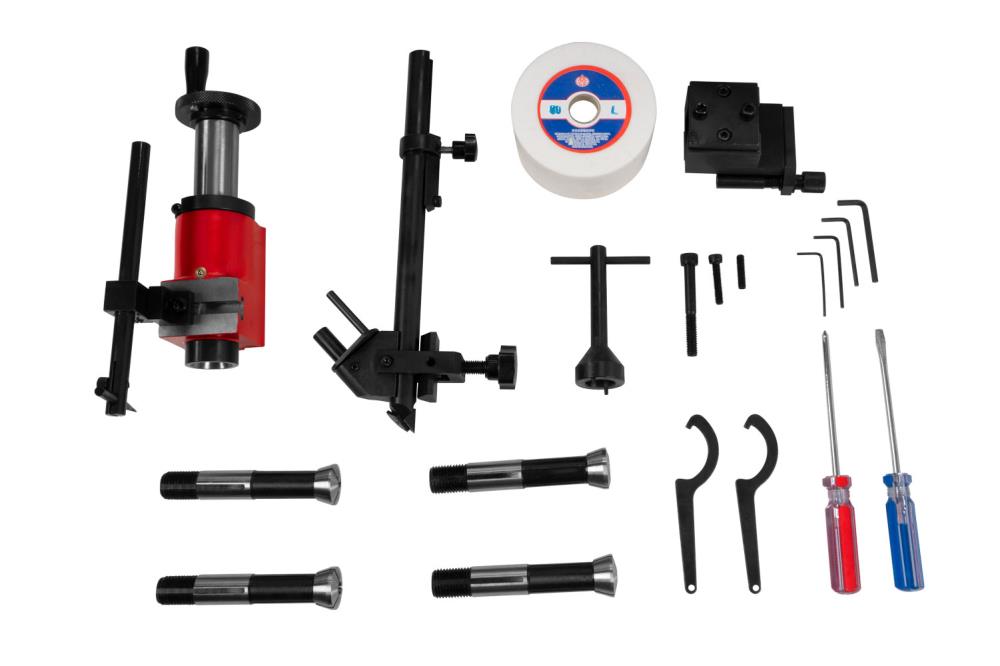

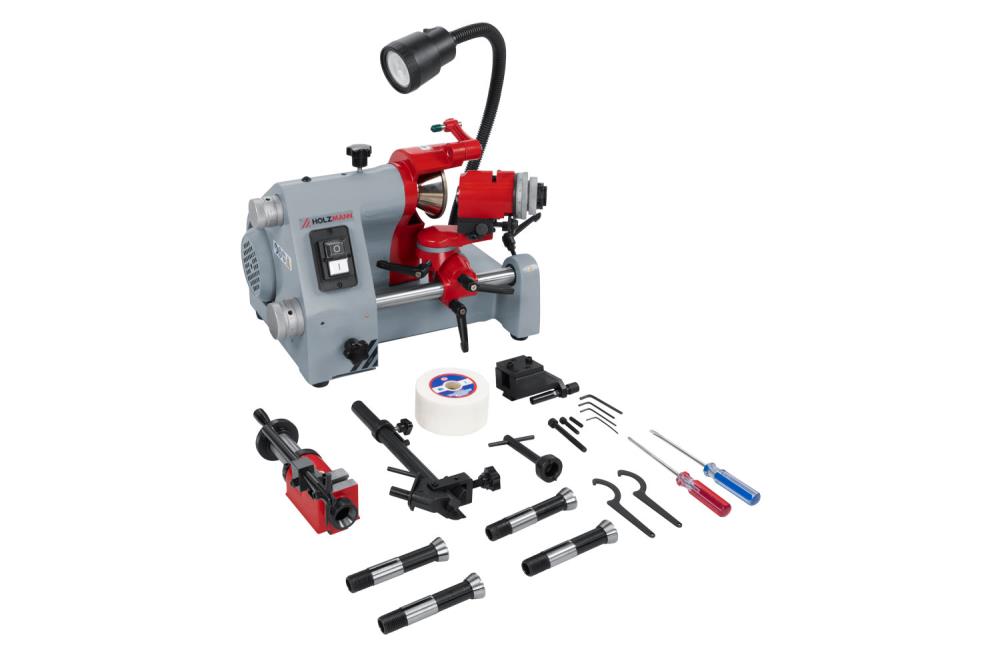

extensive accessories included in delivery: collets (4,6,8,10,12mm), twist drills adapter, end mill adapter, cutter adapter, corundum, diamond wheel, drive belt
