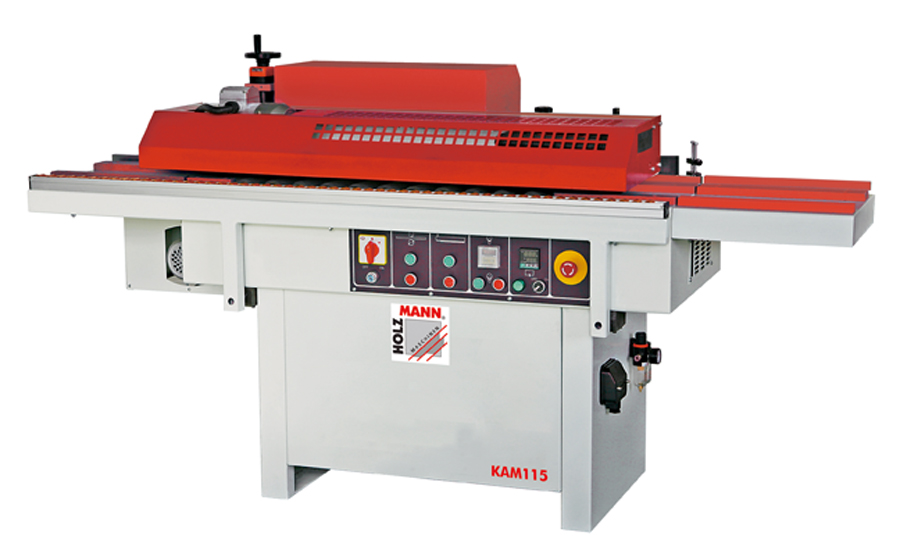

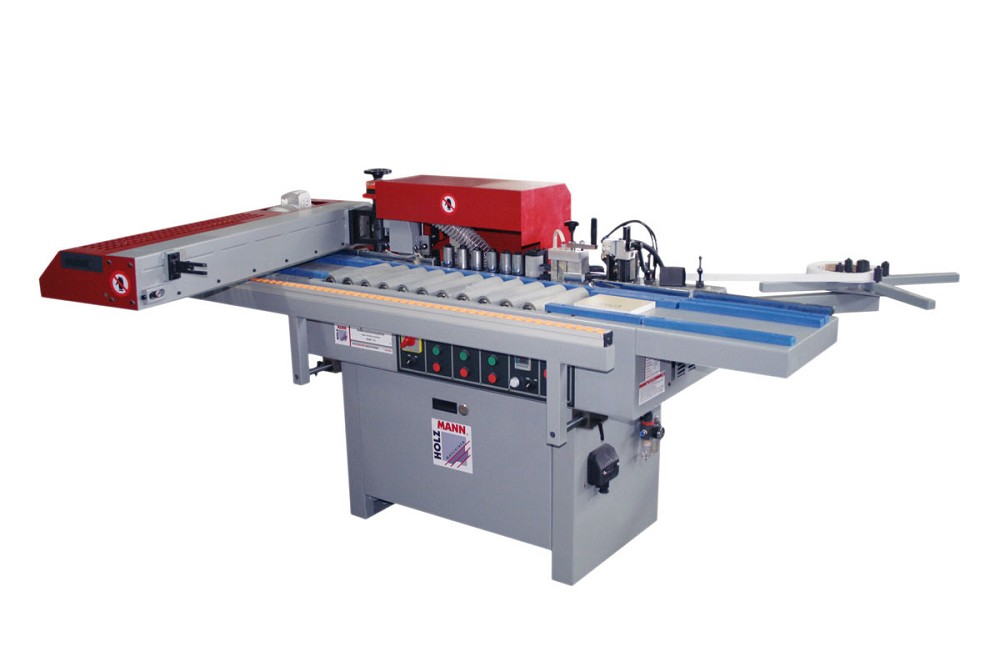

Holzmann edge banding machine KAM 115
- Order number: KAM115
- Open text field 1: 9120039904788
- Open text field 2: 300
motor data motor power s1 in W 2490 feed... more
Product information "Holzmann edge banding machine KAM 115"
motor data
- motor power s1 in W 2490
- feed speed 6.4 m/min
measurements
- suction port in mm 60
- table size in mm 2050x800
- total dimensions in mm 2050x800x1070
workpiece measurements
- max. workpiece thickness in mm 45
- min. workpiece thickness in mm 10
- min. workpiece length in mm 120
- min. workpiece width in mm 90
edge banding
- working temperature in °C 190-200
- required air pressure in bar 7
- edge width in mm 12-48
- edge thickness in mm 0,4-3
weight
- gross weight in kg 350
- net weight in kg 300
packaging
- packaging length in mm 1.710
- packaging width in mm 760
- packaging height in mm 1.060
general data
- EAN code 9120039904788

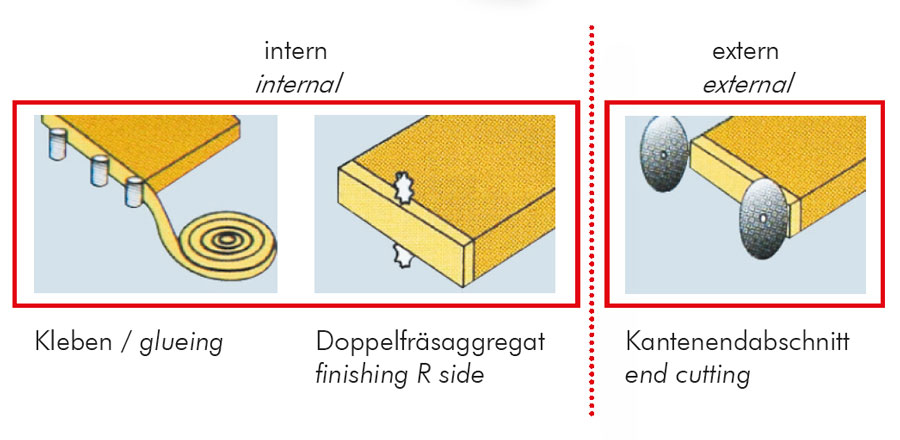

- Automatic and precise glueing prodecure as well as integrated double finishing R side within one workflow. The end cutting can be done at the rear side of the machine.
- one-sided automatic edge banding machine
- glue transfer directly to straight workpieces
- stand by function (prevents to burn the glue
- unit adjustment equipped with counter block for setting different edge types
- LCD display controls glue temperature adjustment
