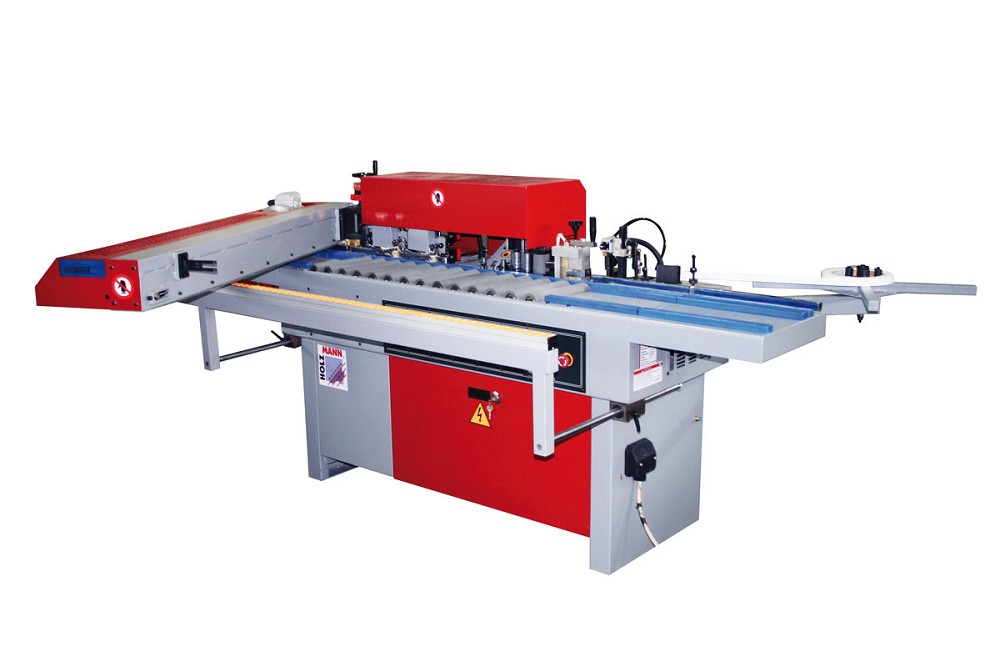

Holzmann edge banding machine KAM 115P

€6,299.00 * €6,999.00 * (10% Saved)

Prices incl. VAT plus shipping costs

Delivery time 90 Workdays

  • KAM115P
      motor data motor power s1 in W 2490 feed... more
Product information "Holzmann edge banding machine KAM 115P"



motor data
  • motor power s1 in W 2490
  • feed speed 6.4 m/min

measurements
  • suction port in mm 60
  • table size in mm 2050x800
  • total dimensions in mm 2050x800x1070

workpiece measurements
  • max. workpiece thickness in mm 45
  • min. workpiece thickness in mm 10
  • min. workpiece length in mm 120
  • min. workpiece width in mm 90

edge banding
  • working temperature in °C 190-200
  • required air pressure in bar 7
  • edge width in mm 12-48
  • edge thickness in mm 0,4-3

weight
  • gross weight in kg 350
  • net weight in kg 300

packaging
  • packaging length in mm 1.710
  • packaging width in mm 760
  • packaging height in mm 1.060

general data
  • EAN code 9120058371592

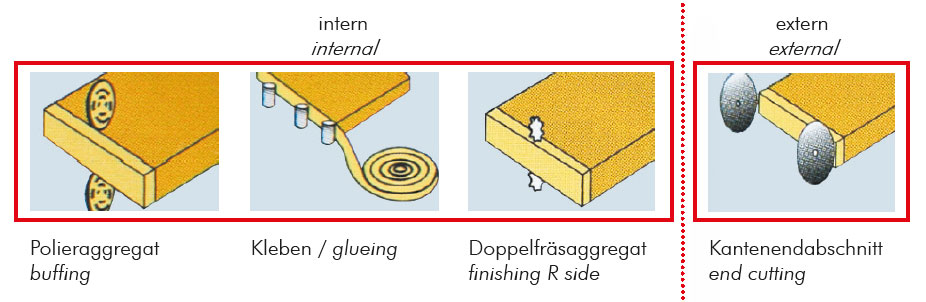

  • Automatic and precise glueing prodecure as well as integrated double finishing R side within one workflow. The end cutting can be done at the rear side of the machine.
  • one-sided automatic edge banding machine
  • glue transfer directly to straight workpieces
  • stand by function (prevents to burn the glue
  • unit adjustment equipped with counter block for setting different edge types
  • LCD display controls glue temperature adjustment

Related links to "Holzmann edge banding machine KAM 115P"
Read, write and discuss reviews... more
Customer evaluation for "Holzmann edge banding machine KAM 115P"
Write an evaluation
Evaluations will be activated after verification.
Please enter these characters in the following text field.

The fields marked with * are required.

KAM215EPS Holzmann edge banding machine KAM 215EPS
€11,249.00 * €12,499.00 *

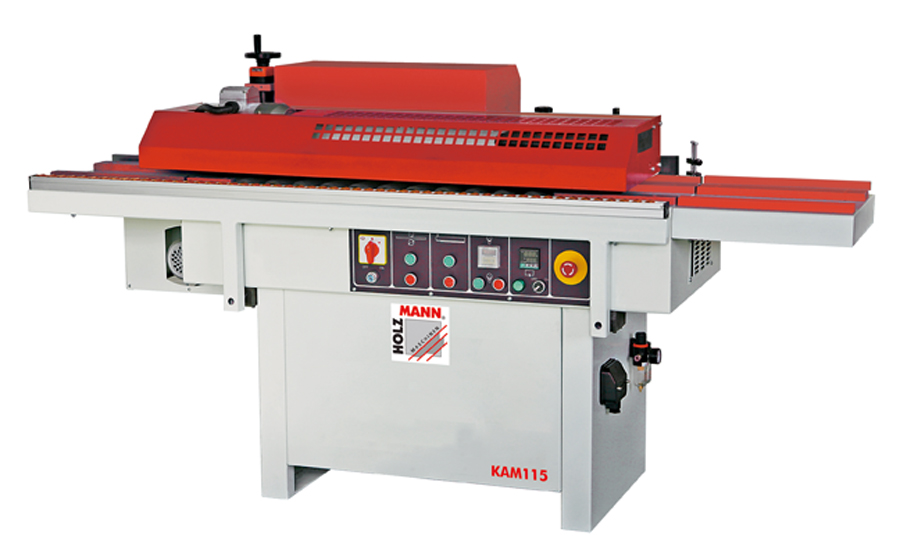

KAM115 Holzmann edge banding machine KAM 115
