€14,399.00 * €15,999.00 * (10% Saved)
Prices incl. VAT plus shipping costs
Delivery time 10 Workdays
- Order number: VS20PRO
motor data motor power S1 in W 16100 voltage 400V / 3... more

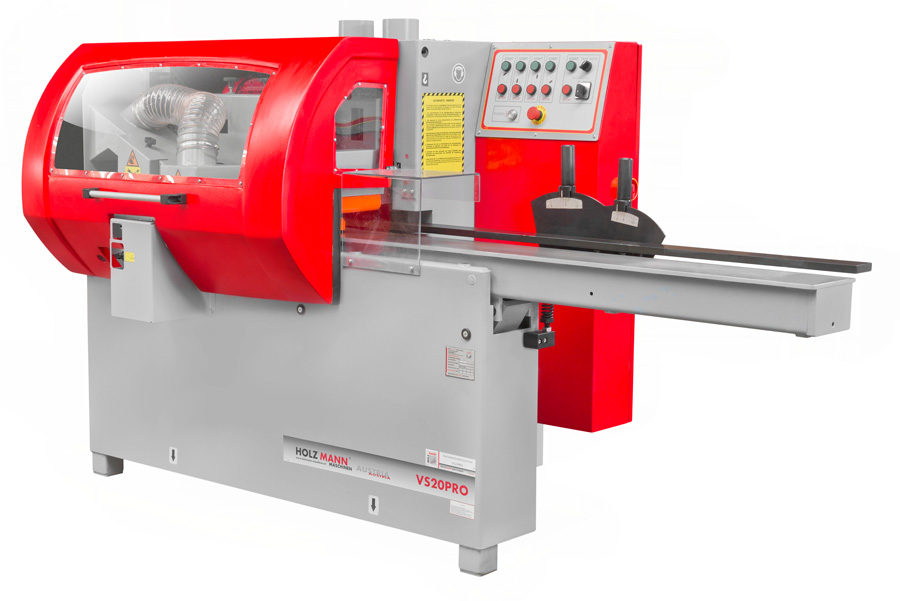

Product information "Holzmann four side planer VS20PRO"
motor data
- motor power S1 in W 16100
- voltage 400V / 3 / 50Hz
weight
- gross weight in kg 1.020
- net weight in kg 1.000
measeurements:
- max. output workpiece width 180 mm
- min. output workpiece width 25 mm
- max. output workpiece thickness 105 mm
- min. output workpiece thickness 10 mm
- min. length of workpiece
- - at single feeding 350mm
- - at group feeding 250mm
- number of working spindles 4
- spindle speed 6000 min-1
- spindle diameter 40 mm
- diameter of cutter head 120 mm
- length of horizontal spindle 190 mm
- length of vertikal spindle 120 mm
- speed of feeding 6; 12 m/min
- diameter of feeding rolls 120 mm
- length of feeding table 1700 mm
- distance between feeding table and ground 920 mm
- fast setting of feeting table and lineal 10 mm
packaging
- packaging height in mm 1.550
- packaging width in mm 2.800
- packaging length in mm 1.200
general data
- EAN Code 9120058372919
- European quality
- solid, heavy and low vibration setup
- steel cast iron construction

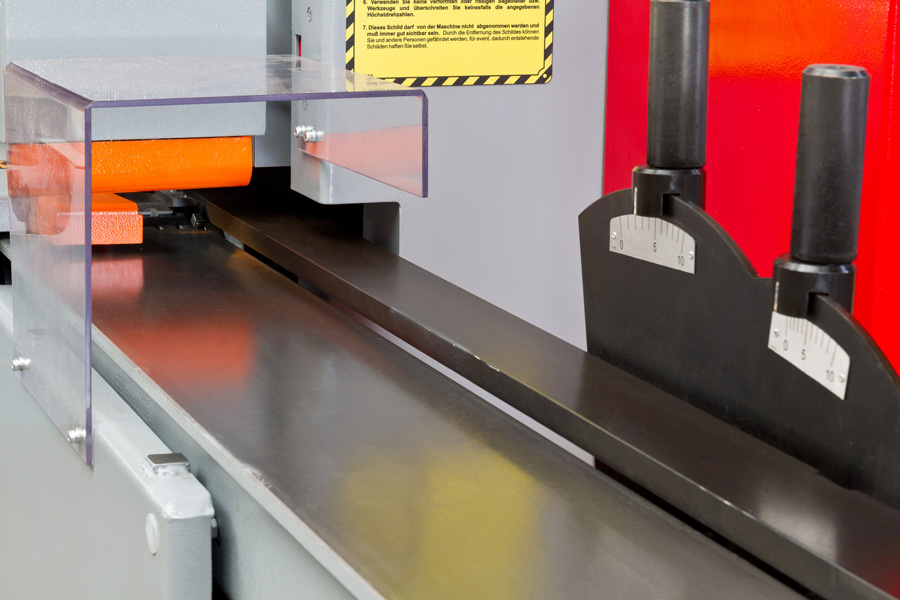

- very long table ensures save feeding of the workpiece

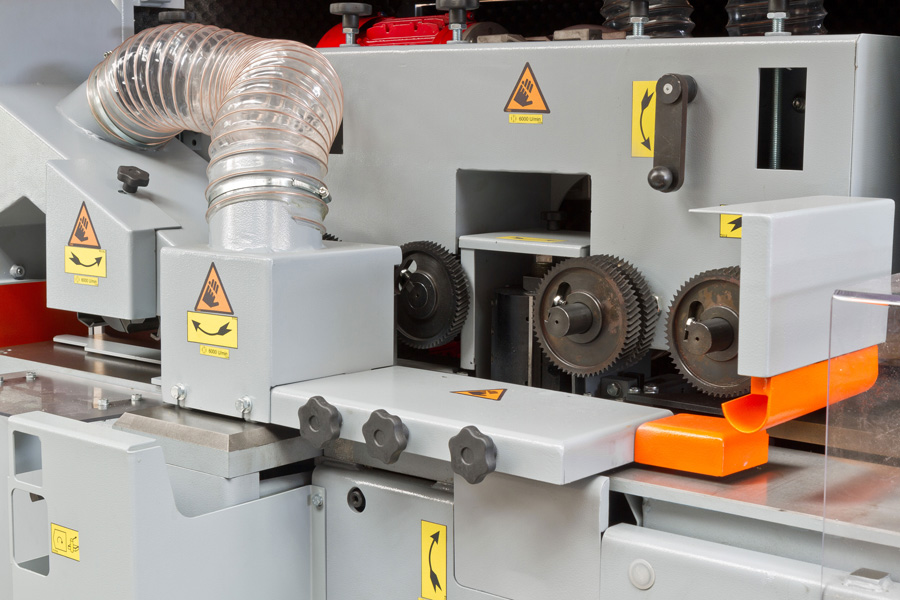

- precise and smooth run of the workpiece by feed roller
- before dressing spindle
- spindle position adjustable via mechanical display
- Pressure on every feeding roller steplessly adjustable

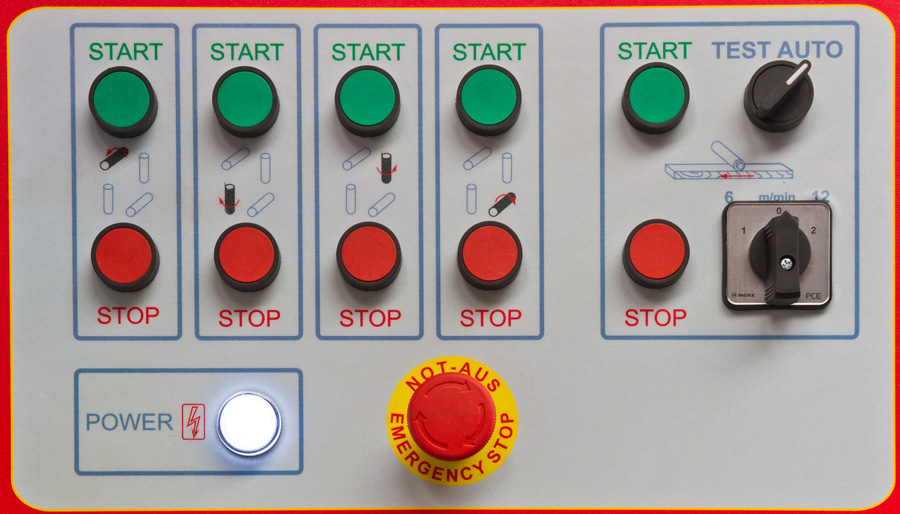

- clearly arranged control elements
- with 4 massive planer heads
- Powerful with 4 engines!
