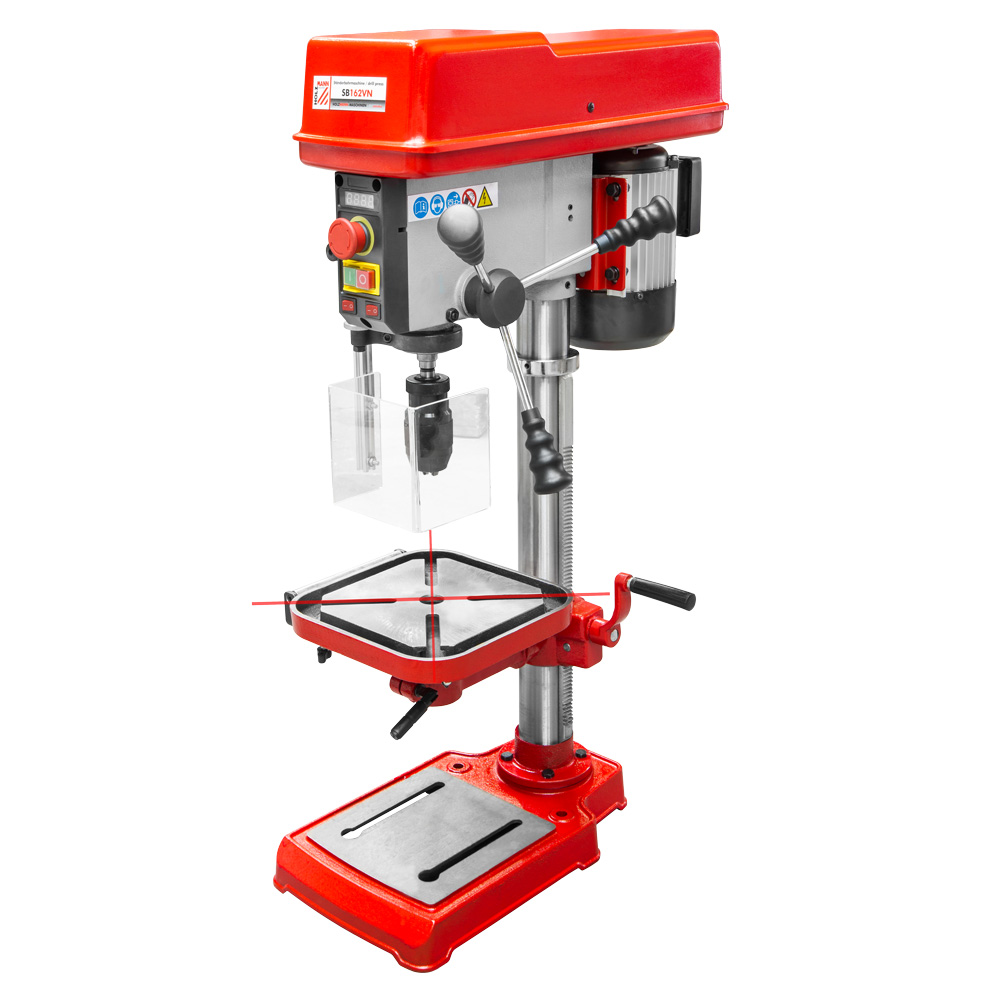

Holzmann drill press SB162VN

HOLZMANN
(1)
Preview: SB162VN Preview: SB162VN Preview: SB162VN Preview: SB162VN
SB162VN
SB162VN
SB162VN
SB162VN

€399.00 * €449.00 * (11.14% Saved)

Prices incl. VAT plus shipping costs

Delivery time 90 Workdays

  • Order number: SB162VN
Description Evaluations 1
Description
  motor data voltage 230V /50 Hz speed in min-1... more
Close menu
Product information "Holzmann drill press SB162VN"



motor data
  • voltage 230V /50 Hz
  • speed in min-1 390-2200
  • protection class I
  • motor power s1 in W 500

measurements
  • outreach in mm 150
  • table size in mm 243x243
  • total dimensions in mm 310x570x910

drilling
  • max. drilling performance in mm 16
  • milling adapter MK2/MT2
  • column diameter in mm 60
  • spindle stroke in mm 90
  • base in mm 413x246
  • distance spindle-base in mm 540

volume level and vibration
  • sound power level in dB(A) 78
  • sound pressure level in dB(A) 59

weight
  • gross weight in kg 40
  • net weight in kg 38

packaging
  • packaging width in mm 498
  • packaging length in mm 762
  • packaging height in mm 280

general data
  • EAN code 9120058376566

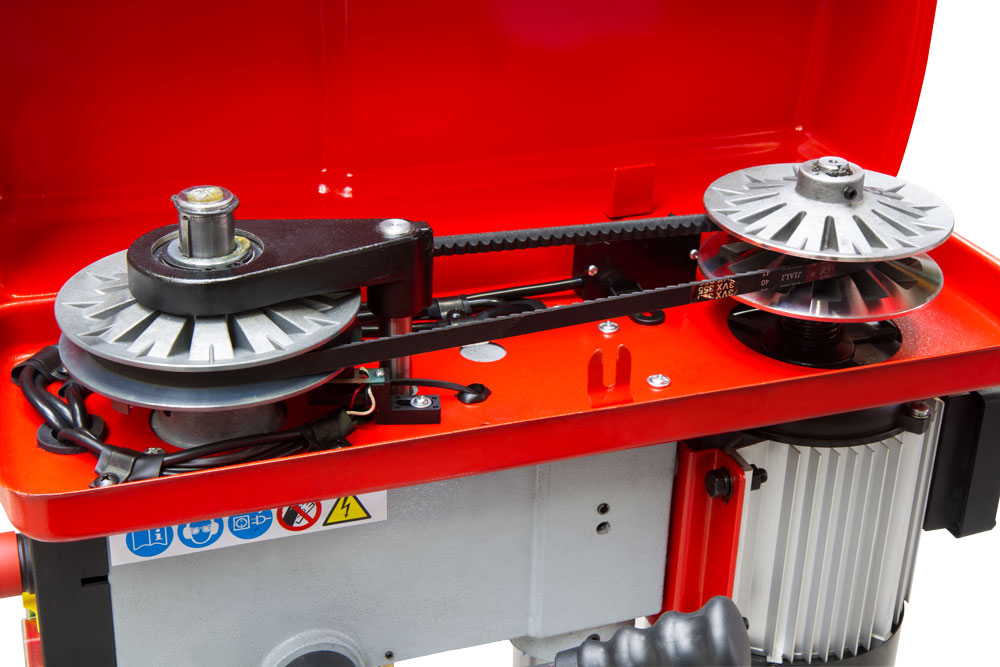

  • VARIO gear
  • incl. centering laser and working light

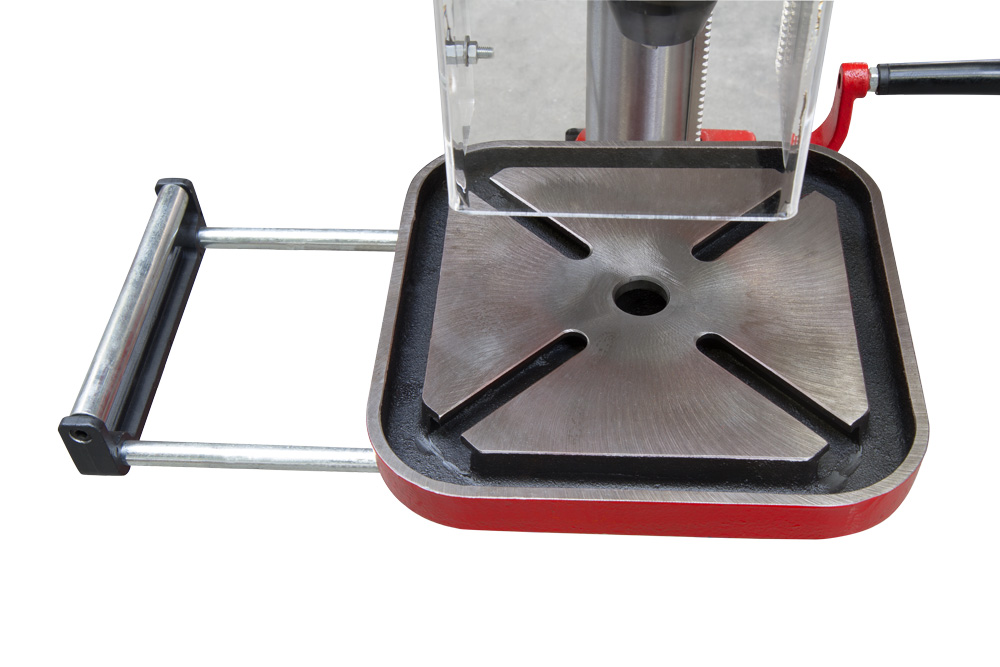

  • extendable work table
  • vario speed with LCD Display
  • features solid, polished base with T-nuts
  • aluminum motor according IP54
  • torsion-resistant, solid and polished steel column
  • the worktable is tiltable from-45° to +45° and rotates 360° around table center and column
  • spindle protection cover
  • adjustable drill depth stop with scale for accurate drill depth control

included in delivery: automatic chuck 3-16mm, B16


Related links to "Holzmann drill press SB162VN"
Available downloads:
Evaluations 1
Read, write and discuss reviews... more
Close menu
Customer evaluation for "Holzmann drill press SB162VN"
From: On: 31 Jan 2019

Topmaschine, gut gemachte Maschine, Preis/ Leistung stimmt.

Gut gemachte Maschine, Preis/ Leistung stimmt.
Drehzahlen von 300 bis 2370 U/min (hätte zwar lieber ab 200 U/min gehabt, aber okay, SB läuft sauber)
Abstand Bohrfutter bis Tisch 245 mm
Abstand Bohrfuttter zur Bodenplatte 420 mm
Rundlauf top
Wem die techn. Daten ausreichen, dem kann ich den Kauf empfehlen.
