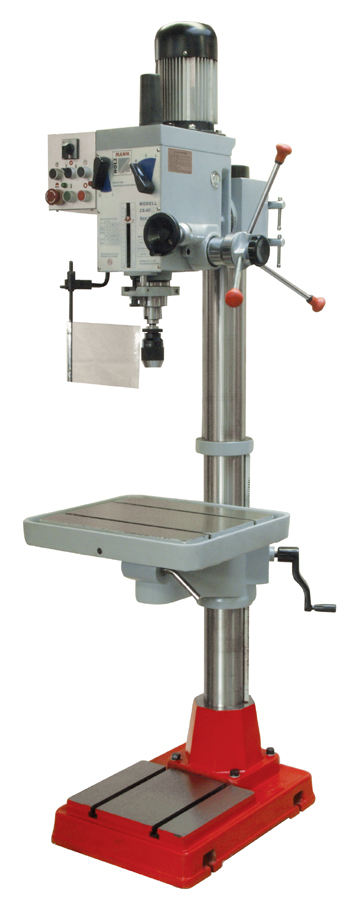

Holzmann gear driven drill press ZX 40HS

€2,339.00 * €2,599.00 * (10% Saved)

Prices incl. VAT plus shipping costs

Delivery time 10 Workdays

  • ZS40HS
max. drilling capacity steel 40 mm spindle collet MT4 spindle speed 95-1600 rpm quill travel 120... more
Product information "Holzmann gear driven drill press ZX 40HS"

max. drilling capacity steel 40 mm
spindle collet MT4
spindle speed 95-1600 rpm
quill travel 120 mm
drilling table 575x354 mm
max. distance spindle to table 272,5 mm
max. distance spindle to table 380 mm
max distance spindle to base 1230 mm
total height 2120mm
column diameter 115 mm
motor power S1 (100%) / S6 1,1kW /1,5kW
voltage 400 V
net weight approx. 265 kg
Versandgewicht 350 kg
Verpackungsmaße 1960x600x730mm


largely dimensioned, height adjustable hardened and precision-ground cast iron table with 360° rotation ability around center and column
the table is equipped with t-nut guides (14mm) to fix devices as a vice
height adjustable and tiltable gear head delivers wide application range
automatic tapping function and CW/CCW run as standard
spindle sleeve downfeed via three spoke hand wheel
permanent oil bath lubricated gear with ground and hardened gear wheels
massive base plate featuring T-slots enables the mounting of oversize height workpieces
powerful motor assures max. drilling performance at continuous duty
torsion resistant column with smoothed surface

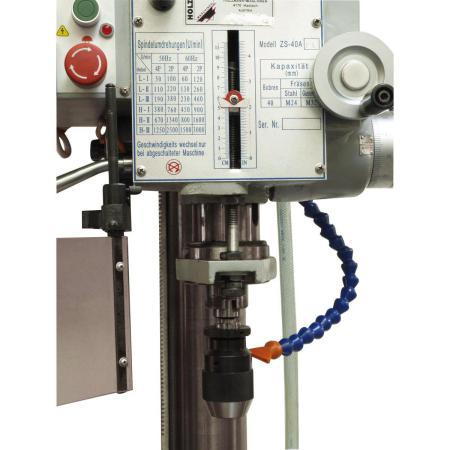

height adjustable spindle protection with microswitch for your safety
fine infeed via precision wheel positioned at machine front with depth scale indication

included in delivery: drill chuck 16mm, reducer MT4/3, MT3/2, wedge, drawbar M12
