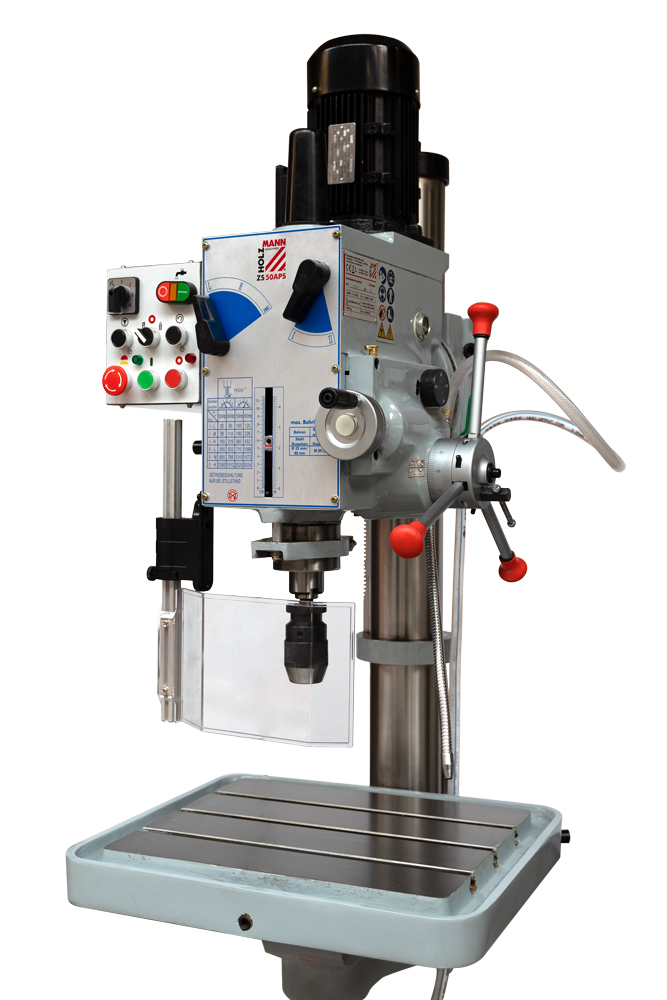

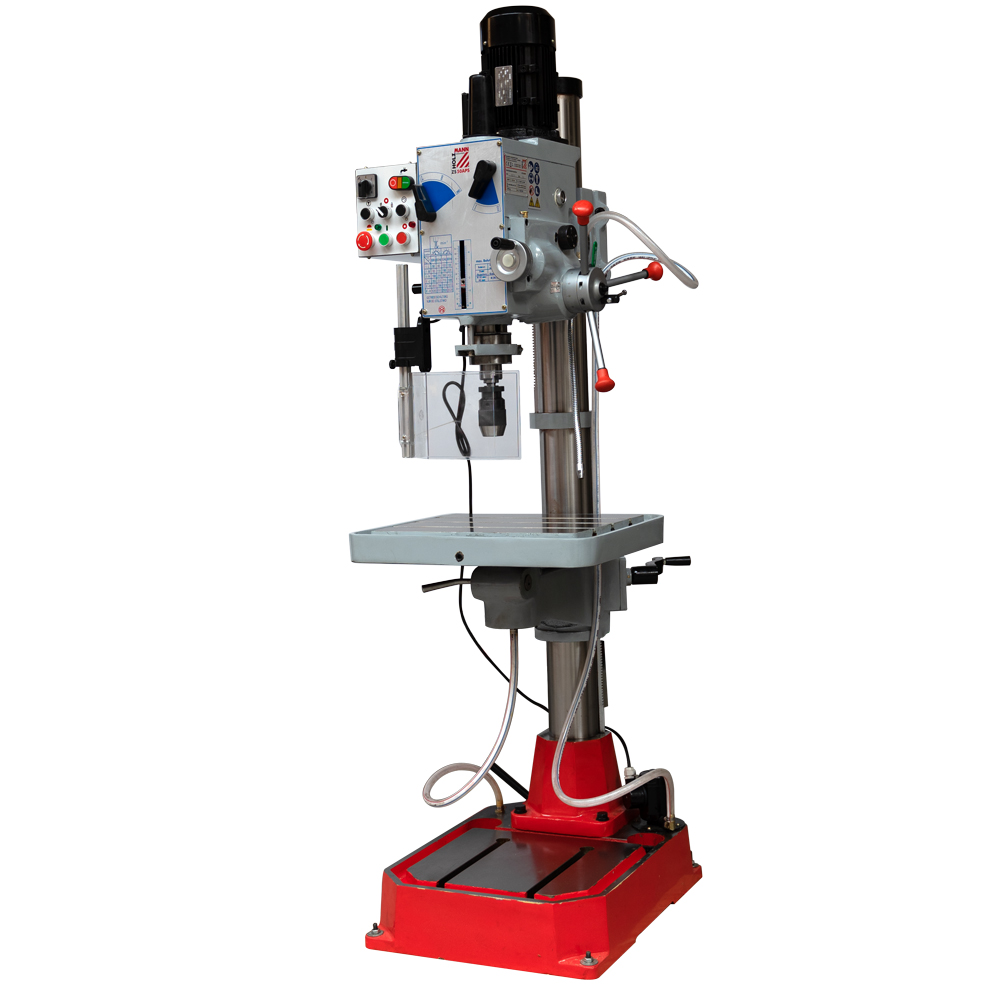

Holzmann gear driven drill press ZS 50APS

€2,599.00 * €3,199.00 * (18.76% Saved)

Prices incl. VAT plus shipping costs

Delivery time 90 Workdays

  • ZS50APS
max. drilling capacity cast Ø40x110 mm spindle collet MT4 spindle speed 50-2500 rpm quill travel... more
Product information "Holzmann gear driven drill press ZS 50APS"

max. drilling capacity cast Ø40x110 mm
spindle collet MT4
spindle speed 50-2500 rpm
quill travel 110mm
drilling table 354x575mm
max. distance spindle to table 260 mm
max. distance spindle to table 754 mm
max distance spindle to base 1270 mm
total height 2120 mm
column diameter 115 mm
motor power S1 (100%) / S6 1,1kW /1,5kW
voltage 400 V
net weight approx. 325 kg
gross weight 410 kg
packaging dimensions 870x2000x740mm


2-step motor delivers a wide spindle speed range, very low base speed ideal for tapping
autom. vertical power feed with three different speeds 0 - 0,12 - 0,18 - 0,24mm/rpm
largely dimensioned, hardened and precision-ground cast iron table can be adjusted in height and rotated 360° around center and column
the table is equipped with t-nut guides (14mm) to fix devices as a vice
cooling system included in delivery
extra wide gear wheels

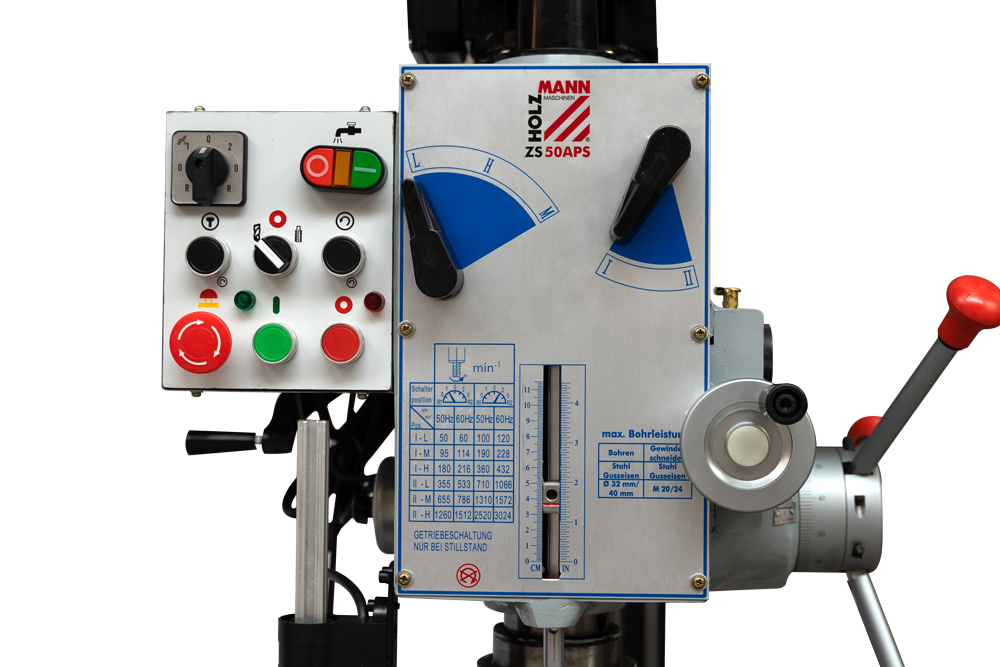

height adjustable and tiltable gear head delivers wide application range
automatic tapping function and CW/CCW run included in delivery
permanent oil bath lubricated gear with ground and hardened gear wheels
massive base plate featuring T-slots enables the mounting of oversize height workpieces
powerful 2-step motor assures max. drilling performance even at heavy duty
torsion-resistant, solid column with smoothed surface
height adjustable spindle protection with microswitch for your safety
fine infeed via precision wheel positioned at machine front with depth scale indication

included in delivery: drill chuck 16mm, reducer MT4/3, MT3/2, wedge, drawbar M12
