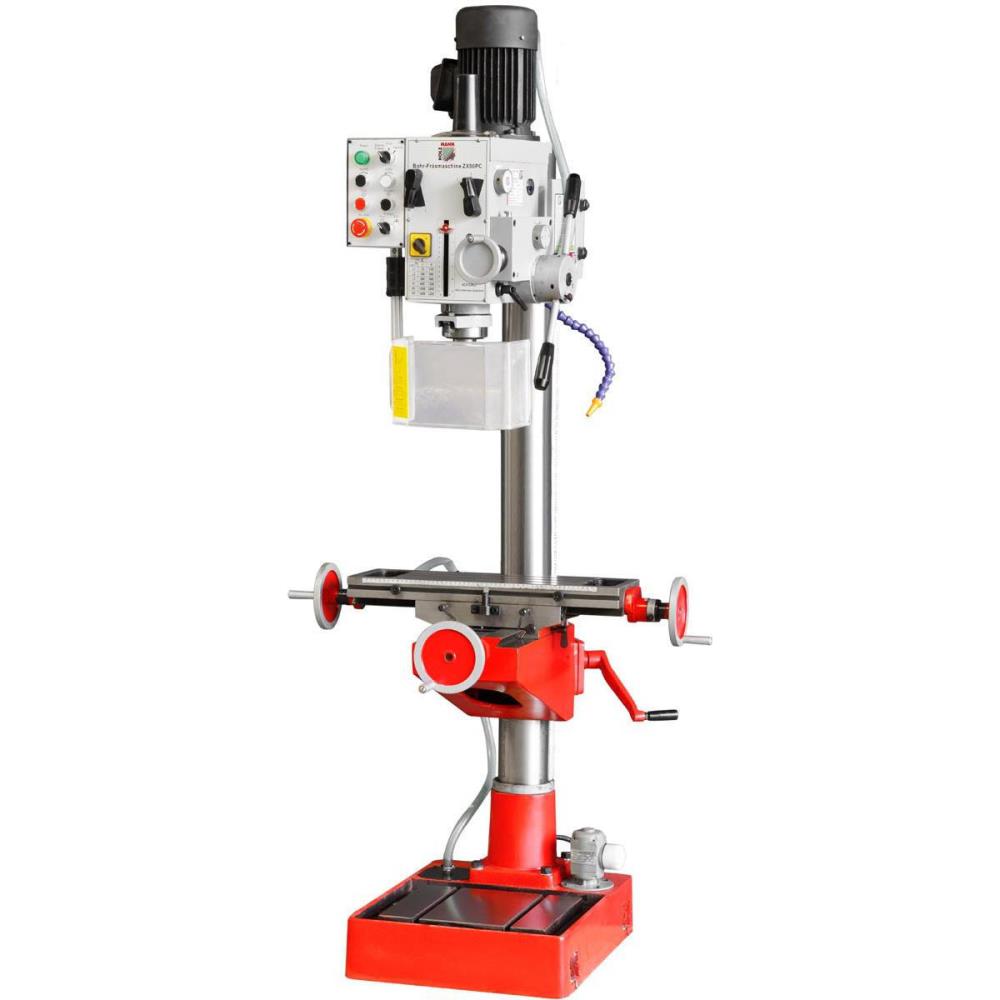

Holzmann drilling and milling machine ZX 50PC

€3,419.00 * €3,799.00 * (10% Saved)

Prices incl. VAT plus shipping costs

Ready to ship today,
Delivery time appr. 1-3 workdays

  • ZX50PC
max. drilling capacity cast Ø40x130 mm spindle collet MT4 spindle speed 70-3200 rpm quill travel... more
Product information "Holzmann drilling and milling machine ZX 50PC"

max. drilling capacity cast Ø40x130 mm
spindle collet MT4
spindle speed 70-3200 rpm
quill travel 130mm
drilling table 190x600mm
max. distance spindle to table 260 mm
max. distance spindle to table 610 mm
max distance spindle to base 1180 mm
total height 2160 mm
column diameter 115 mm
motor power 2-step motor S1 (100%) / S6 1.1/1.5 kW / 1.7/2.2 kW
voltage 400 V
net weight approx. 372 kg
gross weight 380 kg
packaging dimensions 1870x830x760mm


2-step motor for wide speed range (70-3200rpm)
autom. vertical power feed with three different speeds 0 - 0,1 - 0,18 - 0,26mm/rpm
the table is equipped with T-nut guides (12mm) to fix devices as a vice
cooling system included in delivery
extra wide gear wheels
massive base plate featuring T-slots enables the mounting of oversize height workpieces
height adjustable spindle protection with microswitch for your safety
height adjustable and tiltable milling head delivers wide application range
automatic tapping function and CW/CCW run included in delivery

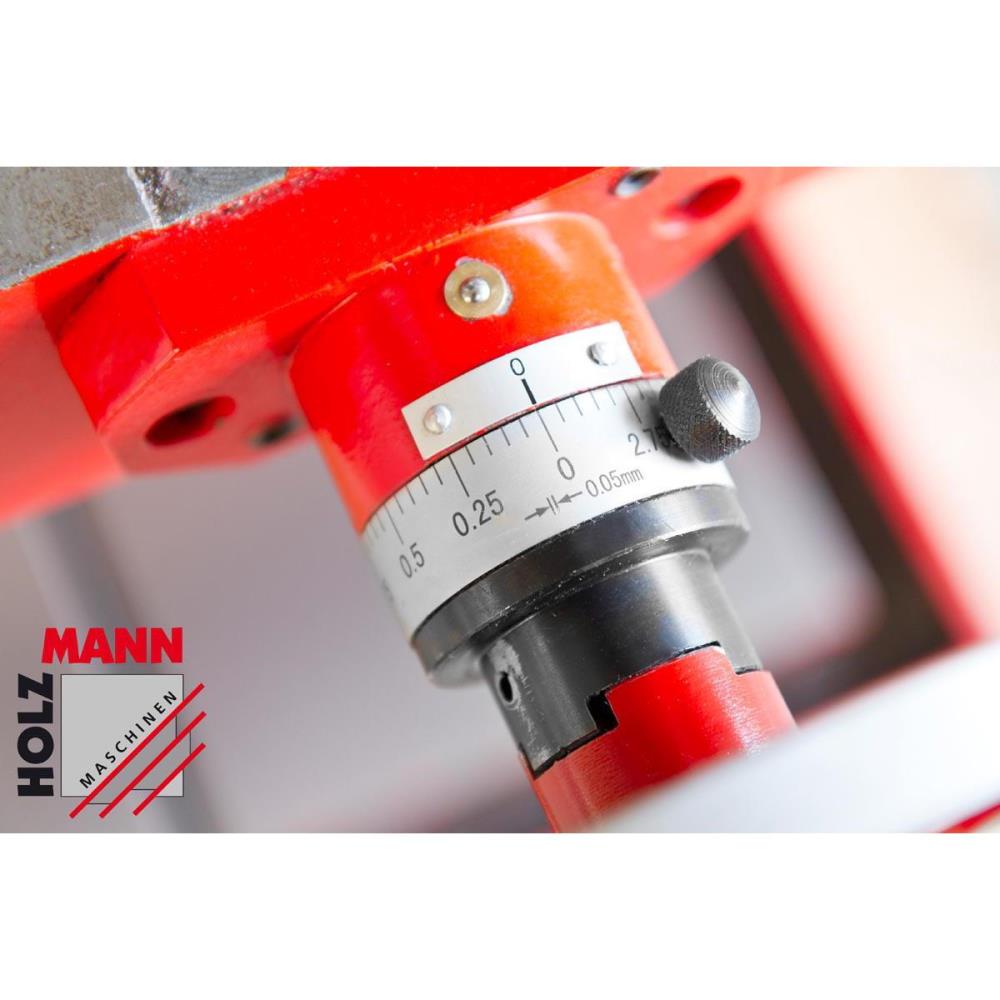

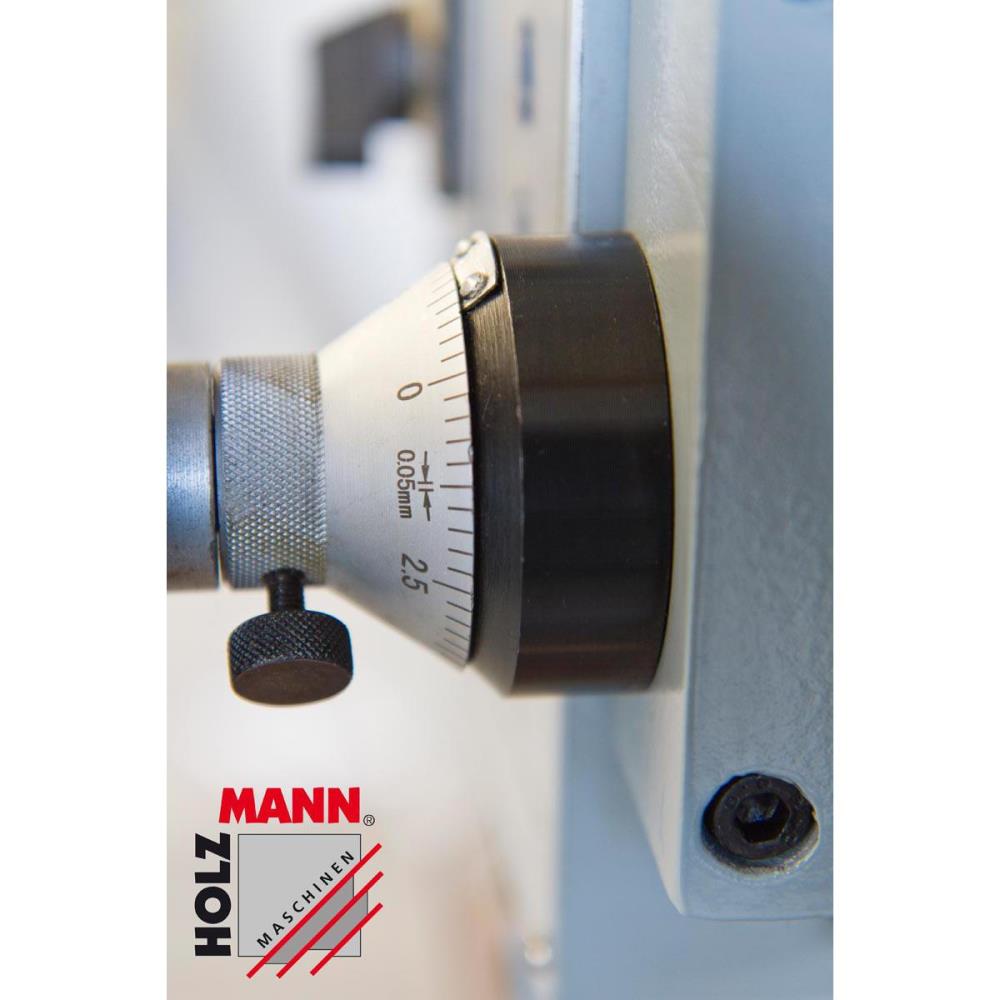

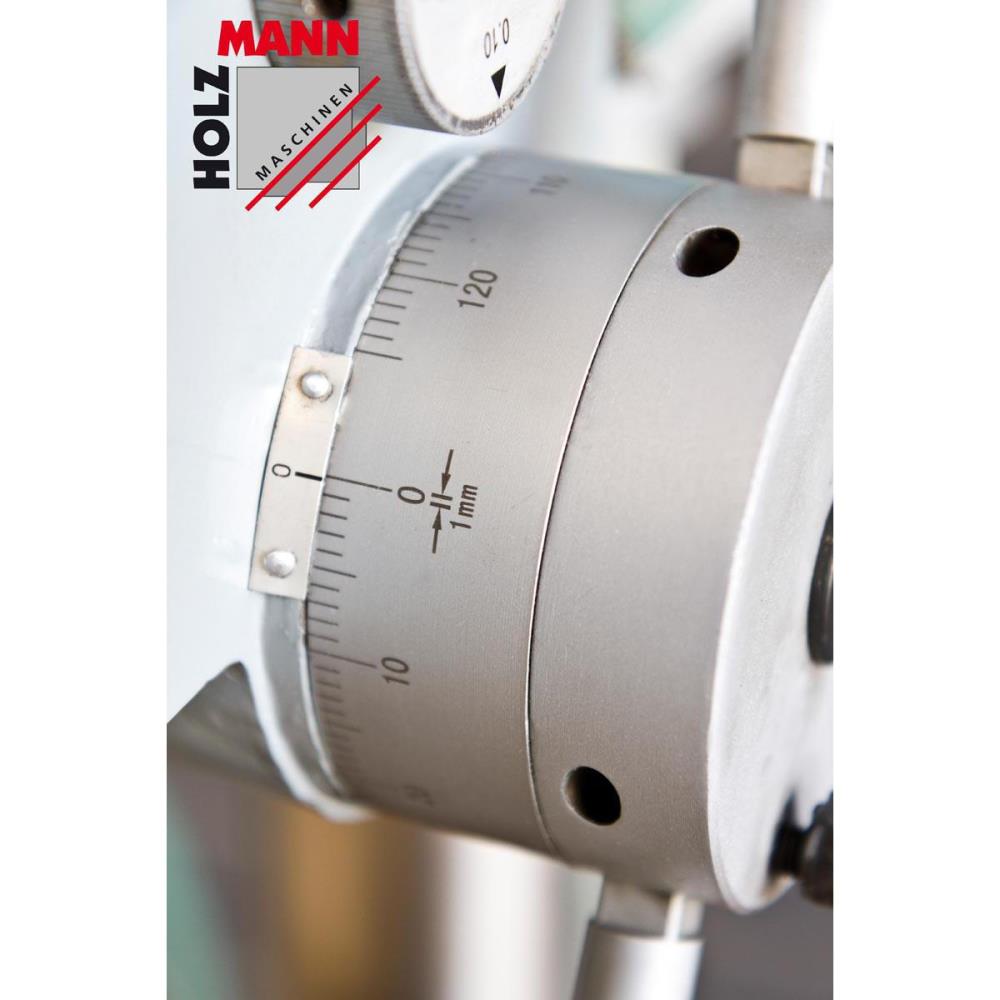

spindle sleeve feed via two spoke hand lever, fine feed via precison handwheel with depth scale
permanent oil bath lubricated gear with ground and hardened gear wheels

included in delivery: drill chuck 16mm, reducing sleeve MT4/3, MT3/2, wedge, cooling system, drawbar M16
