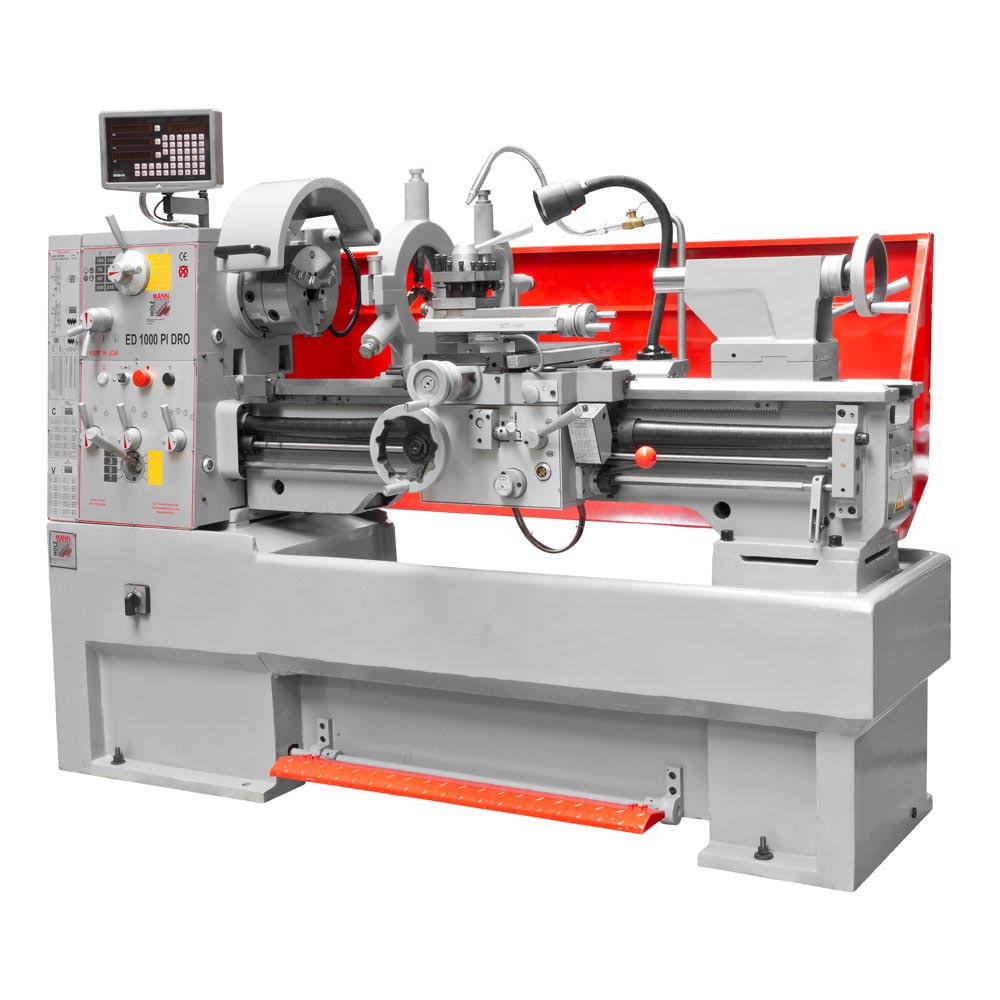

Holzmann metal turning lathe ED1000PI DIG

€10,999.00 * €12,799.00 * (14.06% Saved)

Prices incl. VAT plus shipping costs

Delivery time 180 Workdays

  • ED1000PI_DIG
motor data motor power s1 in W 3300 motor power s6 in W 4600... more
Product information "Holzmann metal turning lathe ED1000PI DIG"
motor data
  • motor power s1 in W 3300
  • motor power s6 in W 4600
  • voltage 400V
turning machines
  • range of inch threads 72-2
  • range of metric threads in mm/r 0,2-14
  • max. tool holder cross-section 25mm
  • lathe spindle speed in min-1 (16) 45-1800
  • max. swing in gap in mm 590
  • max. swing over cross slide in mm 250
  • tailstock cone MK4/MT4
  • spindle nose mount MK6/MT6
  • spindle bore in mm 52
  • carriage travel in mm 120
  • cross feed 0,025-0,85
  • longitudinal feed 0,05-1,7
  • tailstock sleeve travel 120
  • cross slide travel in mm 210
  • distance between centers in mm 1000
  • max. swing over bed in mm 410
  • center height in mm 205
weight
  • gross weight in kg 1800
  • net weight in kg 1600

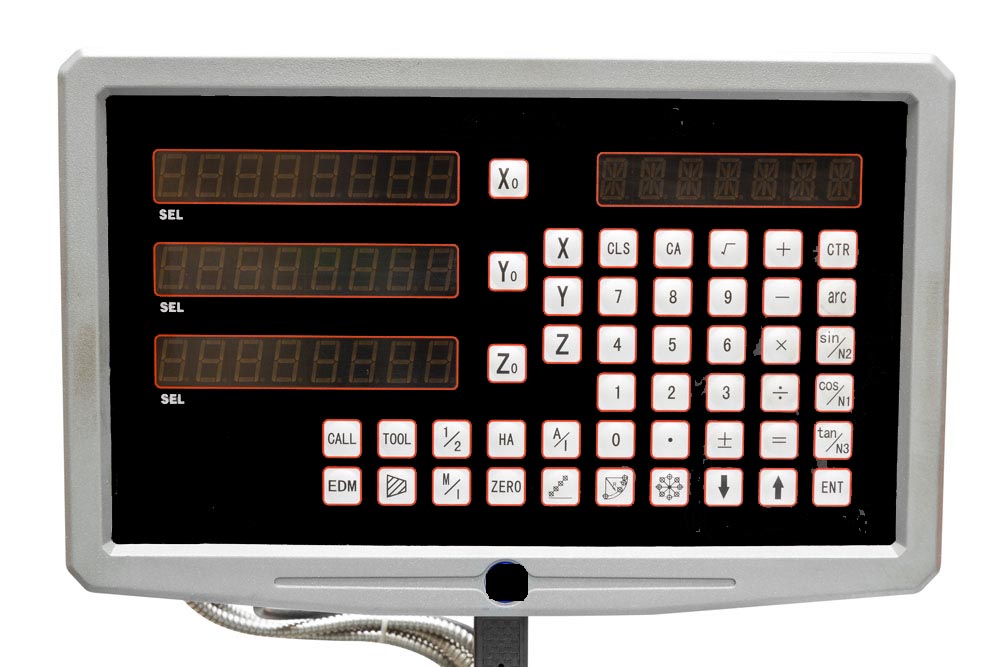

  • 3-axis DRO mounted
  • Heavy industrial machine with cast iron stand eliminating vibration and assuring superior accuracy
  • very wide bedways (250mm) with induction-hardened and precision ground prismatic guideways
  • lead screw cover ensures a long durability
  • handy and easy operation via clearly designed control panel
  • removable bridge enables the machining of large
  • diameters in the gap bed section
  • all guides conveniently adjustable via V-ledges
  • CAMLOCK D1-6, DIN 55029
  • adjustable tailstock for taper turning
  • oil bath gear lubrication with hardened and grinded gear wheels
  • huge spindle bore (Ø=52mm)
  • foot brake as well as an automatic brake system of the spindle
  • different threads without changing gear wheels
  • includes as standard halogen lamp and coolant device

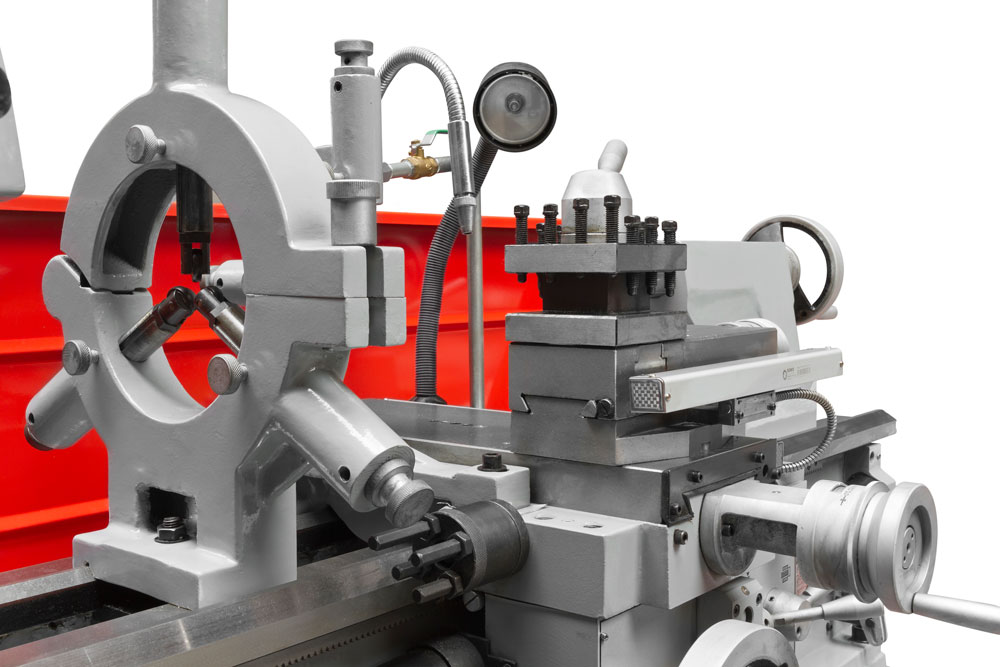

included in delivery: 3-jaw chuck Ø200mm, 4-jaw independent chuck Ø250mm, face plate Ø350mm, reducer MT6/MT4, 2pcs dead centers MT4, steady rest aperture 15 – 160mm, follow rest (centering range 14-70mm), stand, foot break, splash guard, chuck guard, micrometre fence, thread dial, 4 way tool post, cooling device, halogen lamp, change gears, tools
