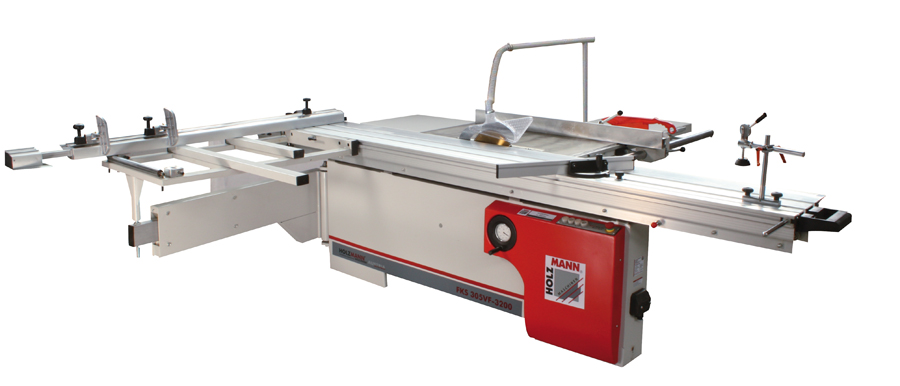

Holzmann panel saw FKS 305VF-3200
- Order number: FKS305VF_-_3200
motor data motor power s1 in W 4000 motor power s6 in W 5600 voltage 400V... more
Product information "Holzmann panel saw FKS 305VF-3200"
motor data
- motor power s1 in W 4000
- motor power s6 in W 5600
- voltage 400V
measurements
- outrigger table in mm 1110x610
- sliding table in mm 3200x370
- suction port in mm 100
- table height in mm 850
- table extension in mm 500x505 / 790x500
- table size in mm 980x550
cutting performance
- max. cutting width at parallel fence in mm 1150
- max. cutting height 45° in mm 55
- max. trimming in mm 3450
- max. cutting height 90° in mm 80
- scoring unit motor power in W 750/1050
circular saws
- sawblade speed in min-1 4500/5500
- scoring sawblade in mm Ø120
- sawblade in mm 305
- scoring unit speed in min-1 8000
- sawblade swivel 0°-45°
weight
- gross weight in kg 780
- net weight in kg 700
packaging
- packaging length in mm 2.150
- packaging width in mm 1.050
- packaging height in mm 980
general data
- EAN code 9120039903859
- massive profi alu sliding table and extra long outrigger enables to handle big workpieces -
- perfect for cutting heavy large boards and plates

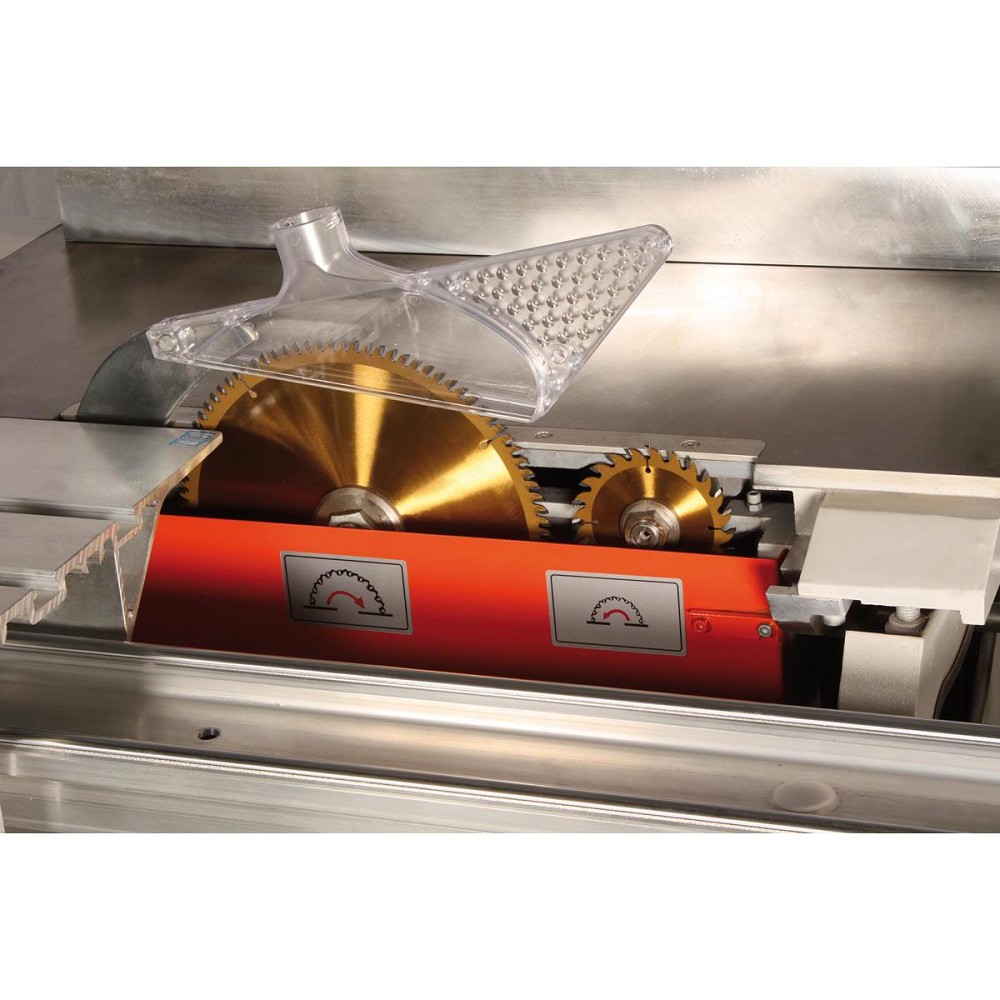

- equiped scoring unit powered by a separate motor
- compact control panel located at machine frontside for operation convenience
- smoothly running saw blade height and angle adjustment via hand wheel
- analog read out of saw blade adjustment (height and tilt)
- two different cutting speeds as standard
- high quality and stable machine body
- table extensions enable convenient working conditions

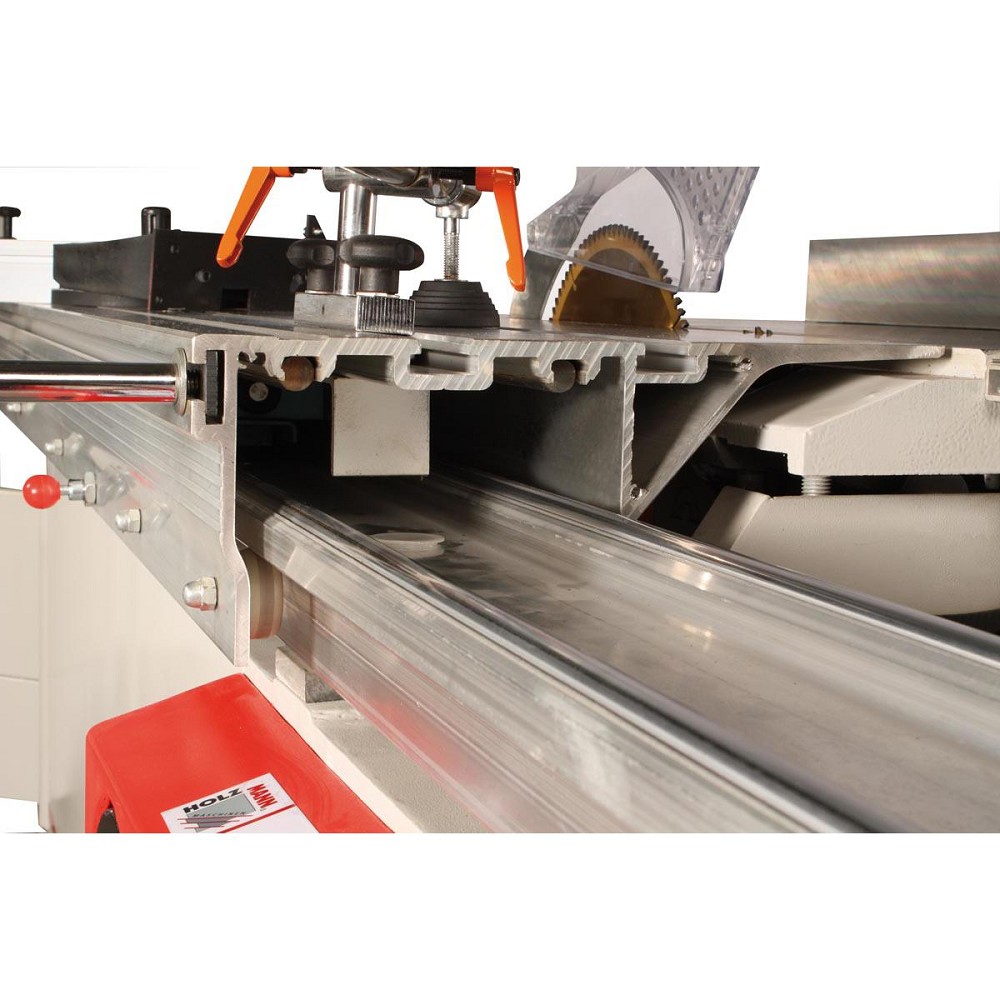

- double roller carriage aluminium sliding table with
- hardened steel guides,
- results in smooth running and highest precision
- heavy machine with massive, rugged but precise
- construction for max. cutting accuracy
- very accurate and solid rip fence with fine adjustment function
- extractable and solid mitre fence (1600-3150) at outrigger table incl. 2 end stops
- max. cutting width at parallel fence 1150mm
