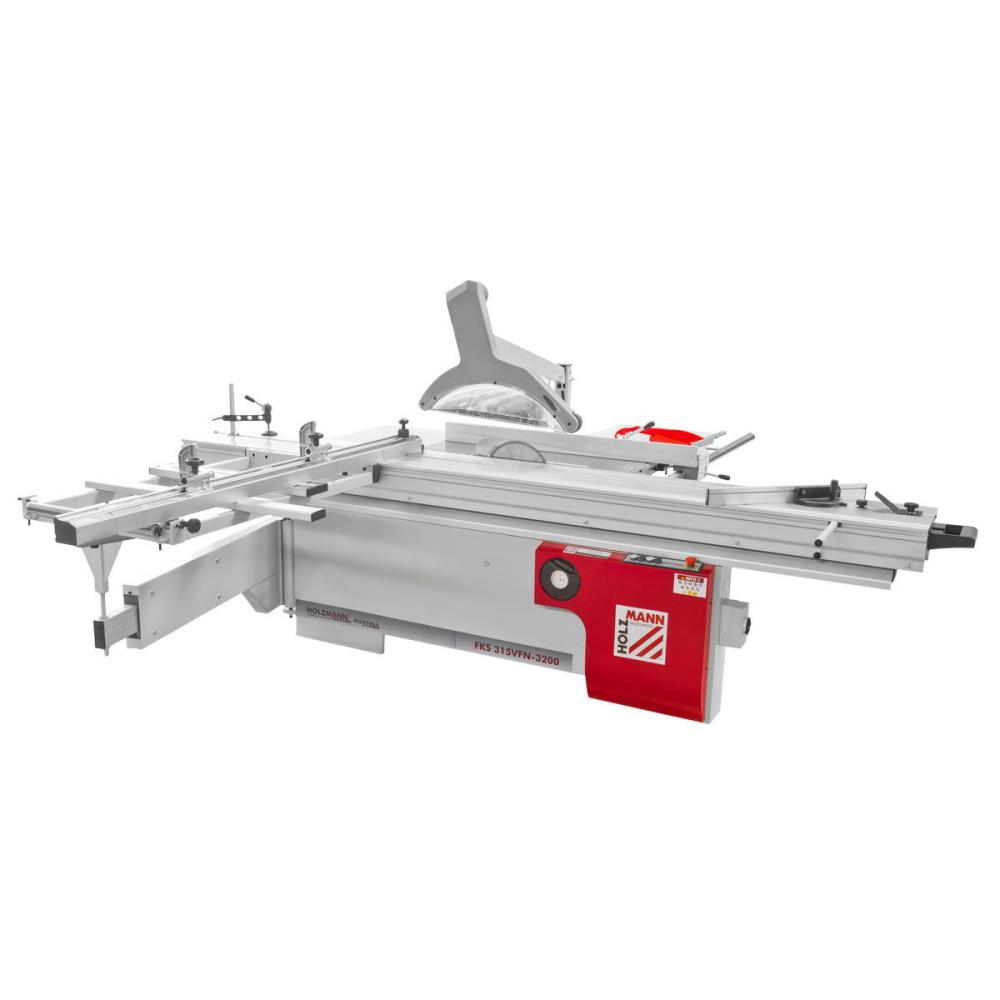

Product information "Holzmann panel saw FKS 315VFN-3200"
motor data
motor power s6 in W 7700
voltage 400V / 3 / 50 Hz
measurements
suction port in mm Ø 100
sliding table in mm 3200x375
cutting performance
max. cutting length 90° in mm 3200
max. cutting height 90° in mm 80
max. cutting height 45° in mm 55
max. cutting width at parallel fence in mm 1150
scoring unit motor power in W 750
circular saws
sawblade in mm 315 / 30
scoring sawblade in mm 120 / 20
sawblade speed in min-1 4500 / 5500
scoring unit speed in min-1 8000
sawblade swivel 45°
weight
gross weight in kg 780
net weight in kg 700
packaging
packaging height in mm 980
packaging width in mm 1.070
packaging length in mm 2.250
general data
EAN code 9120058372452

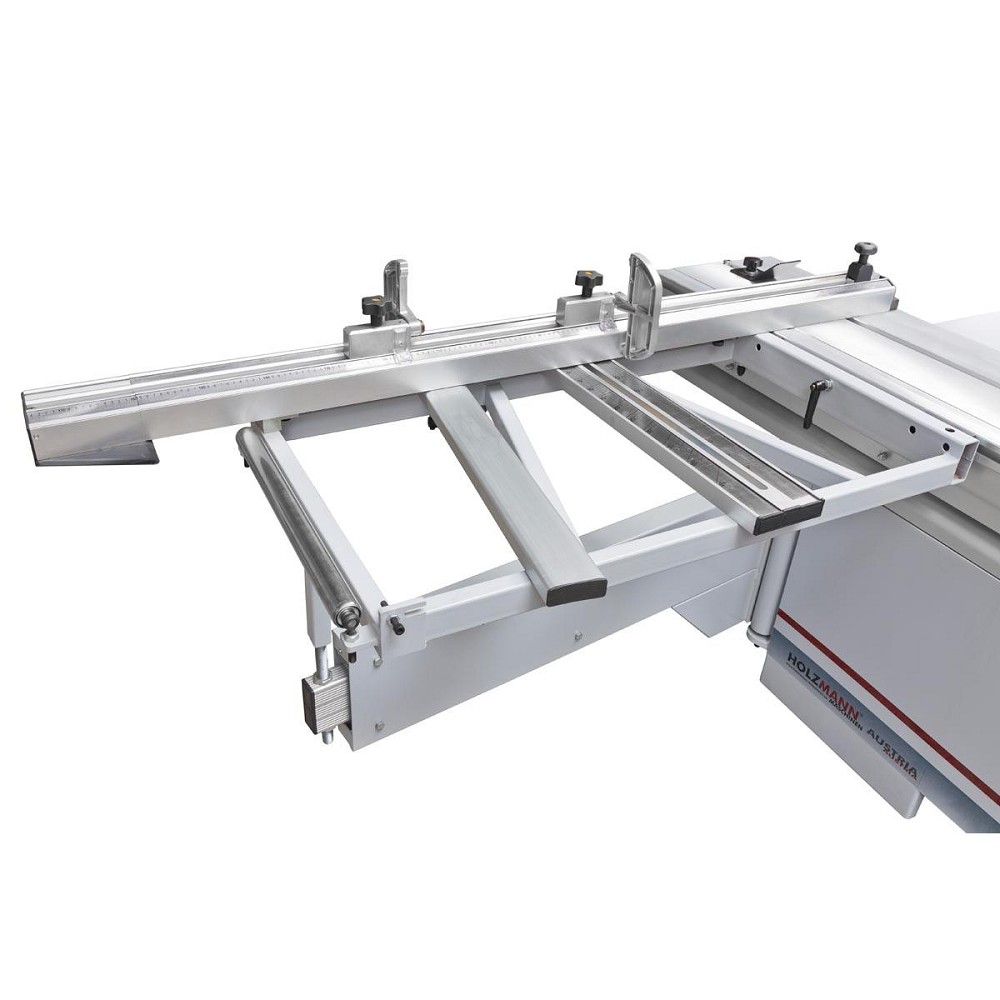

massive profi alu sliding table and extra long outrigger enables to handle big workpieces - perfect for cutting heavy large boards and plates

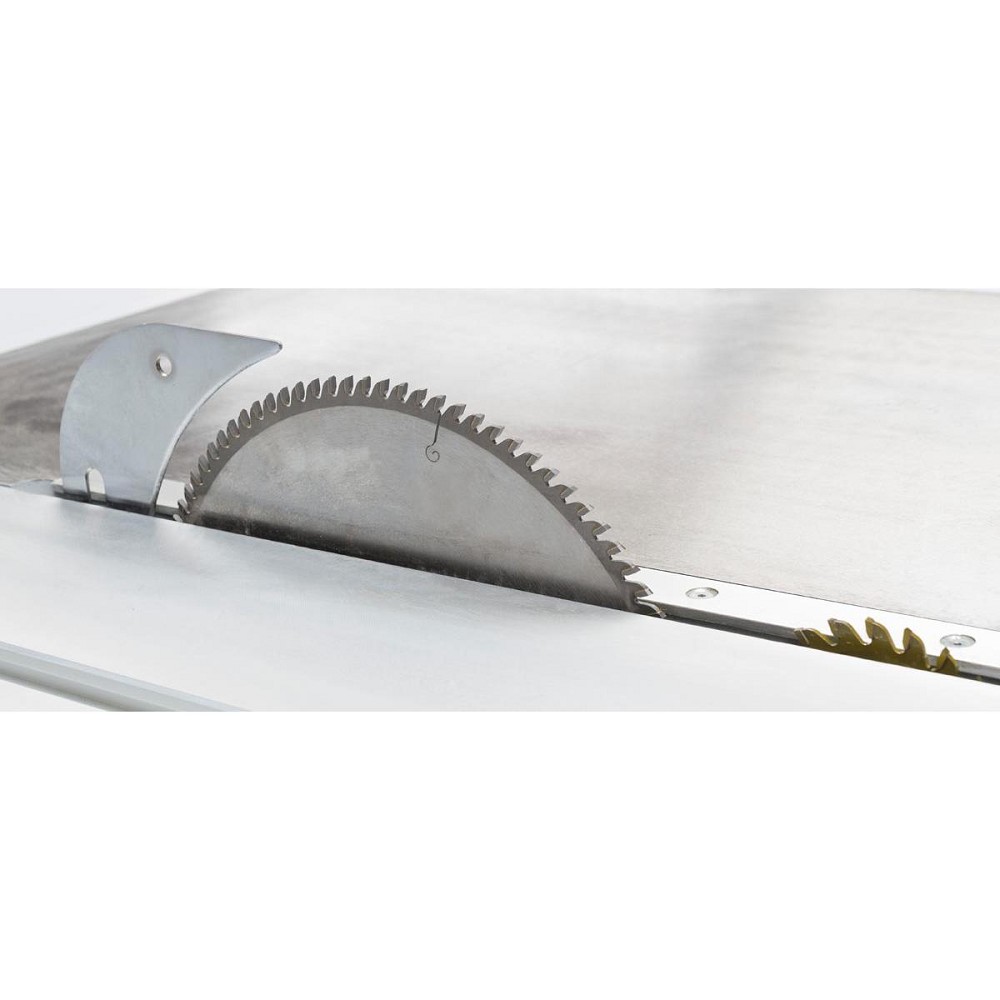

equiped scoring unit powered by a separate motor

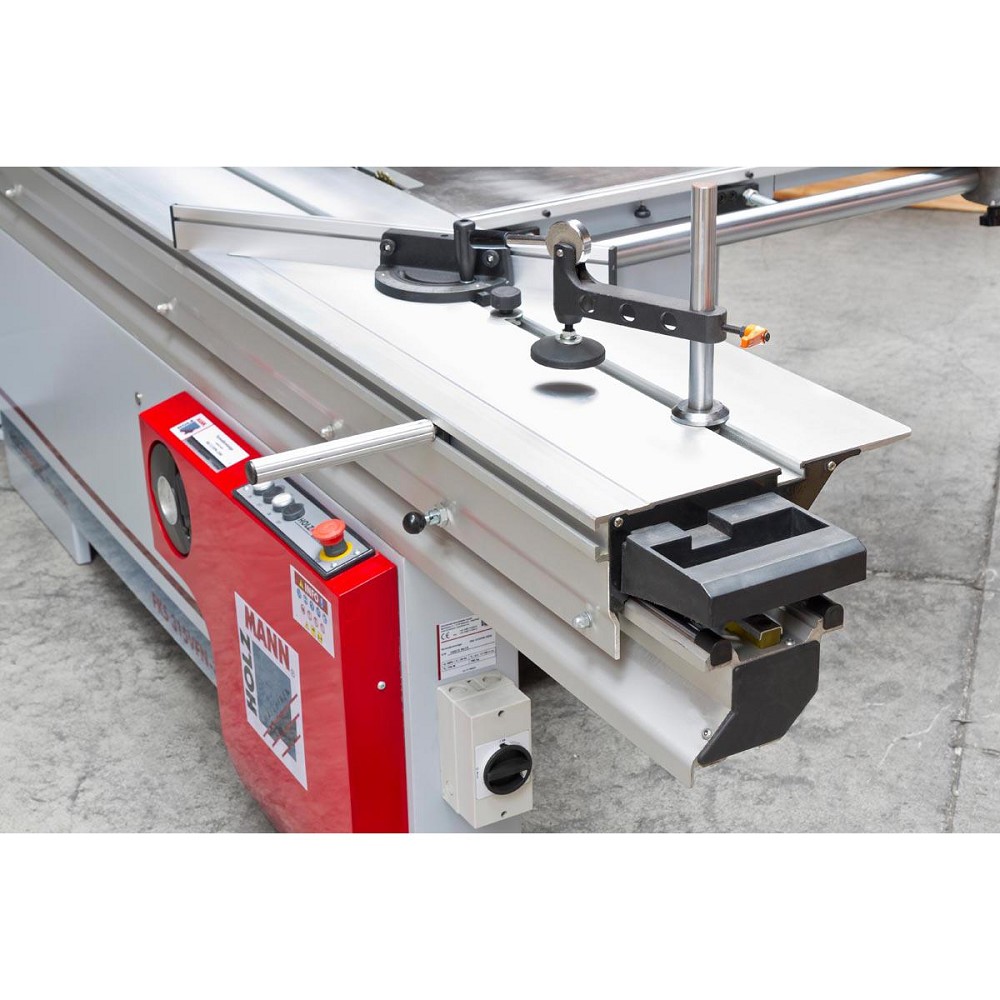

compact control panel located at machine frontside for operation convenience

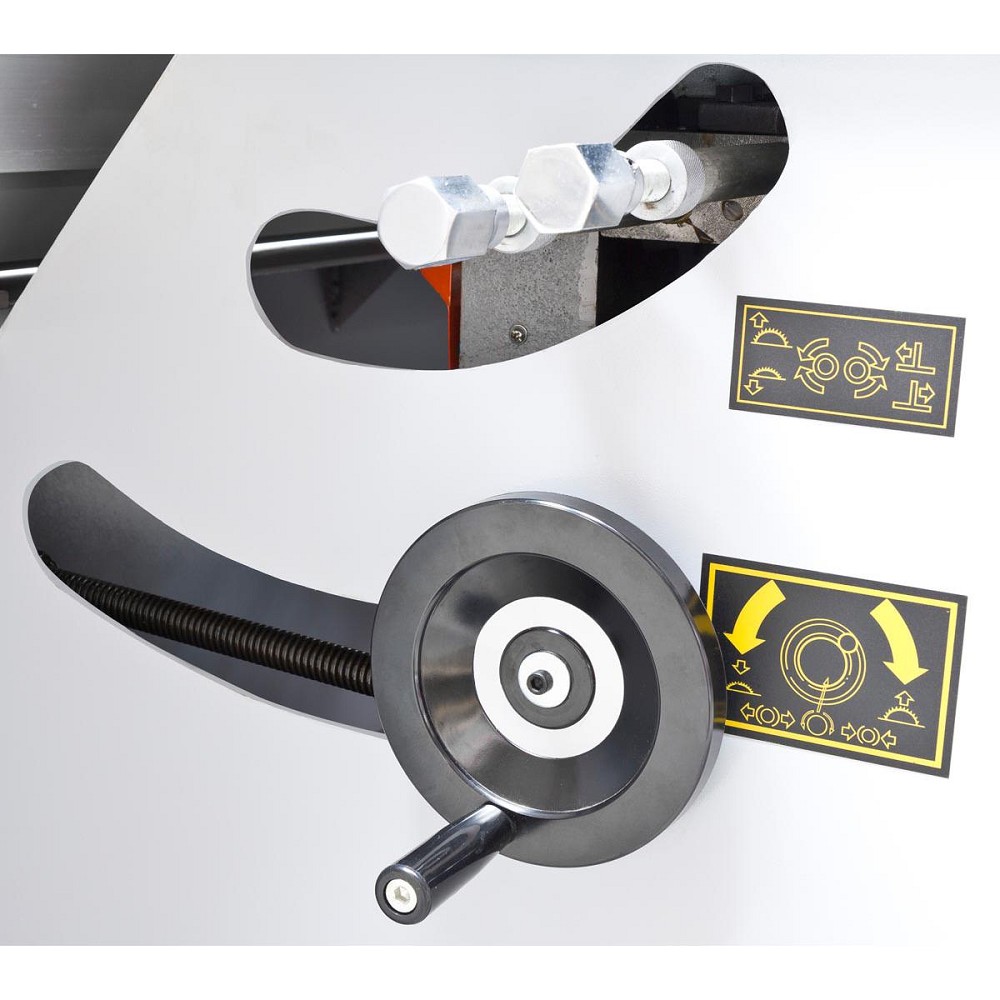

smoothly running saw blade height and angle adjustment via hand wheel
analog read out of saw blade adjustment (height and tilt)
two different cutting speeds as standard
high quality and stable machine body
table extensions enable convenient working conditions
double roller carriage aluminium sliding table which results in smooth running and precision
heavy machine with massive, rugged but precise construction for max. cutting accuracy

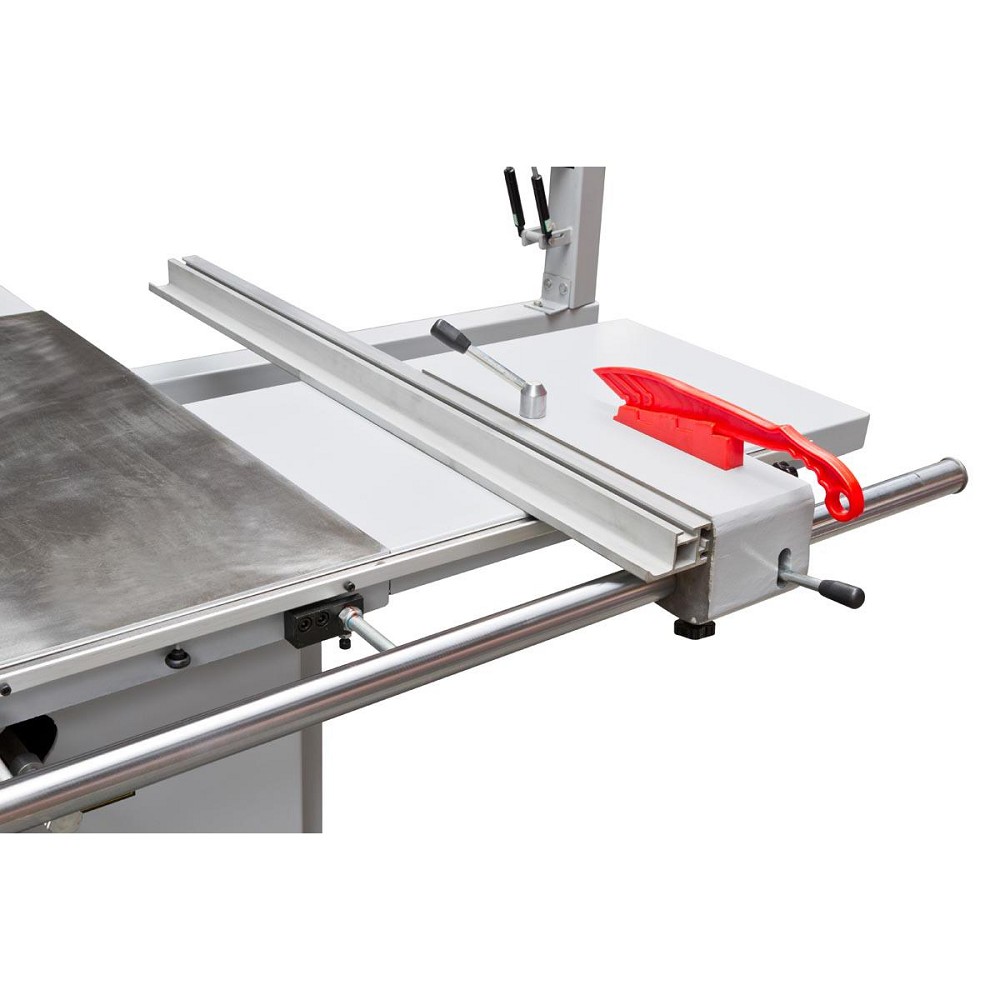

very accurate and solid rip fence with fine adjustment function

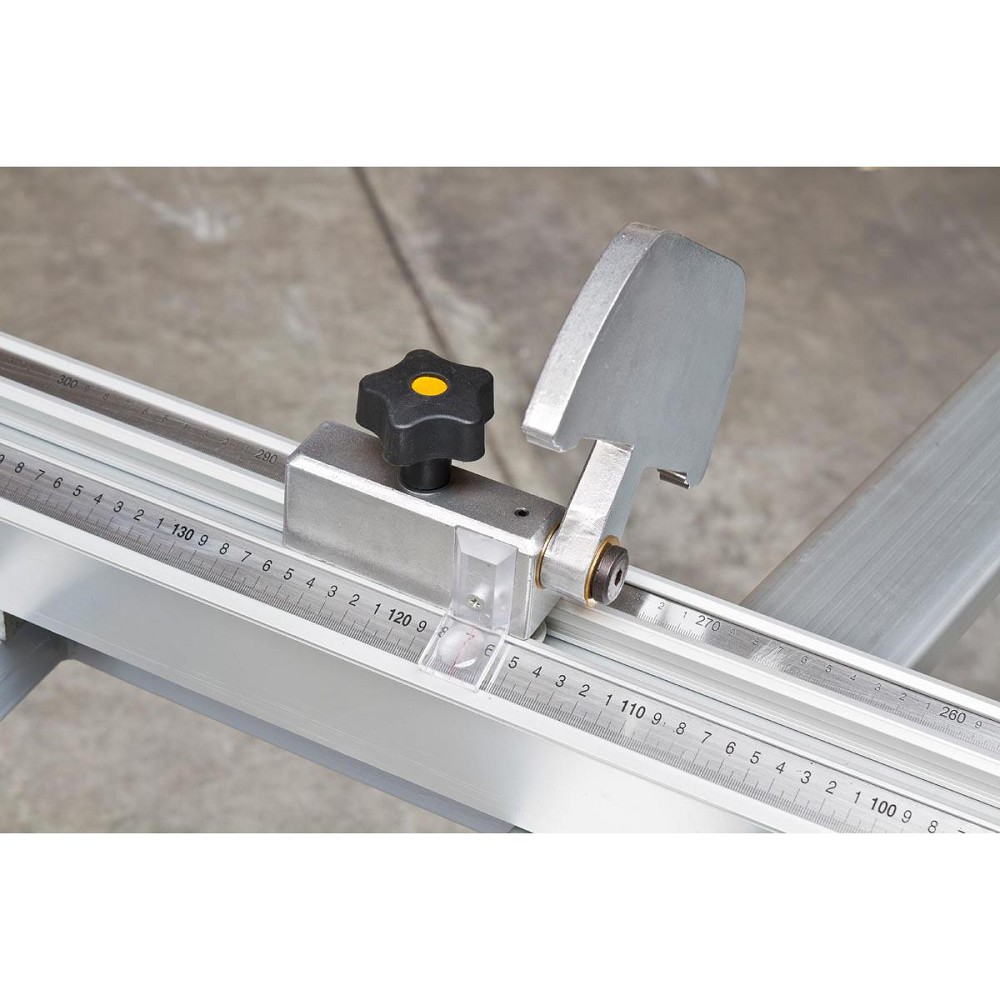

extractable and solid mitre fence at outrigger table incl. 2 end stops

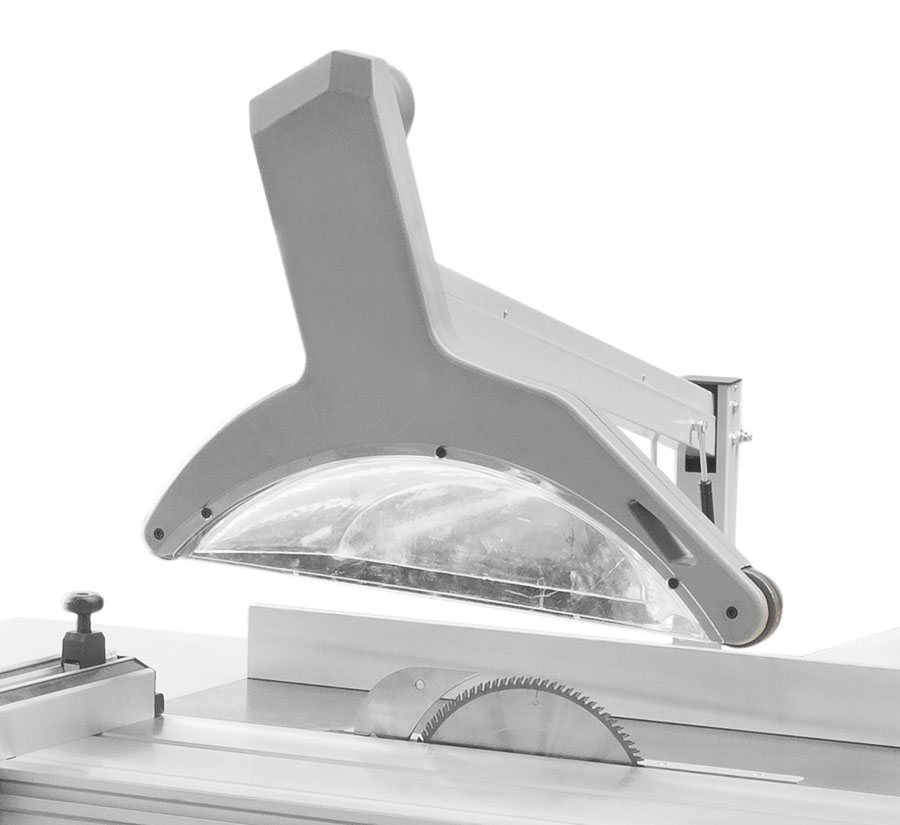

Please note that this machine is only available with the suction hood shown on the picture! There are other pictures of this machine circulating, which do not correspond to the current scope of delivery.
