- Order number: BTS75-2
motor data motor power s1 in W 1,5 / 1,8 kW motor power s6 in W 2,1 /... more

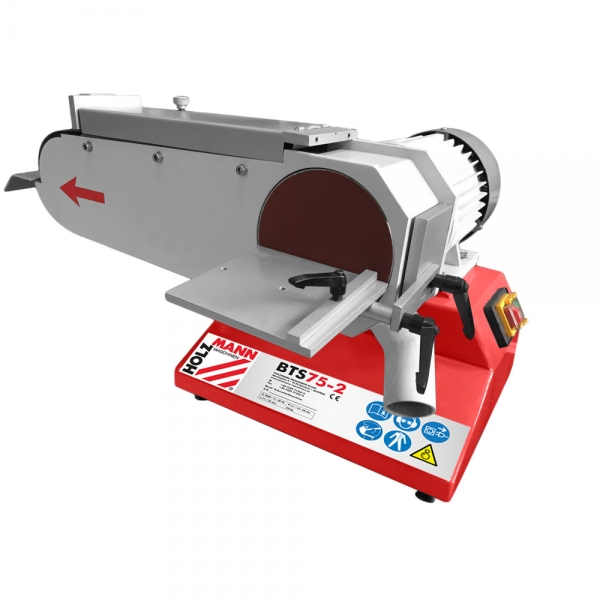

Product information "Holzmann belt and disc sander BTS75-2"
motor data
- motor power s1 in W 1,5 / 1,8 kW
- motor power s6 in W 2,1 / 2,5 kW
- voltage 400V / 3 / 50Hz
measurements
- table size in mm 150x130
- suction port in mm 50
- swivel range 0°-45° / 0°-90°
grinding
- belt dimensions in mm 75x1180
- belt speed 11 m/s 22 m/s
- grinding disc diameter in mm 150
weight
- gross weight in kg 68
- net weight in kg 63
- for grinding surfaces, edges, grinding weld joints and so on
- torsion free machine housing grants low-vibration running
- high belt speed for excellent grinding performance
- high lubricity of the sanding belt thanks due to graphite surfacing
- quickly adjustable from vertical to horizontal position
- customizable workpiece support
- 2 speeds
